3-pole terminal block 7.5 mm pitch STELVIO CLL7.5 / 3
Product Code: 324CLL7.5-3
Inventory Status:
out of stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1.21349 | €1.480458 |
| 1 | Promo | €1.09214 | €1.332411 |
| 10 | 10% | €0.98293 | €1.199175 |
| 50 | 25% | €0.81911 | €0.999314 |
| 100 | 35% | €0.70989 | €0.866066 |
| 500 | 50% | €0.54607 | €0.666205 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

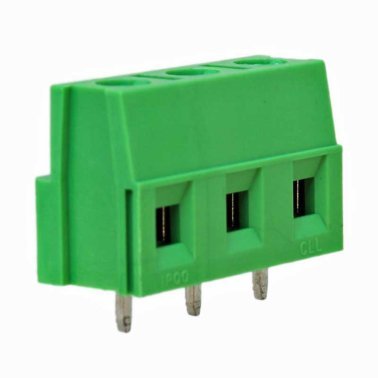

Side-by-side terminal block with 3-pole PCB 7.5 mm pitch Stelvio CLL7.5 / 3
3-way 7.5mm pitch PCB terminal block with carriage contact. The terminal can be placed side by side with other CLL series terminals to create the desired number of ways.
Features
- Number of routes: 3
- Pitch: 7.5 mm
- Mounting: PTH (PCB)
- Nominal voltage: 500 Volts
- Nominal current: 24 Ampere
- Insulating Body: PA - UL 94 V0
- Screw: M3 slotted 0.6 x 3.5mm screwdriver
- Green colour

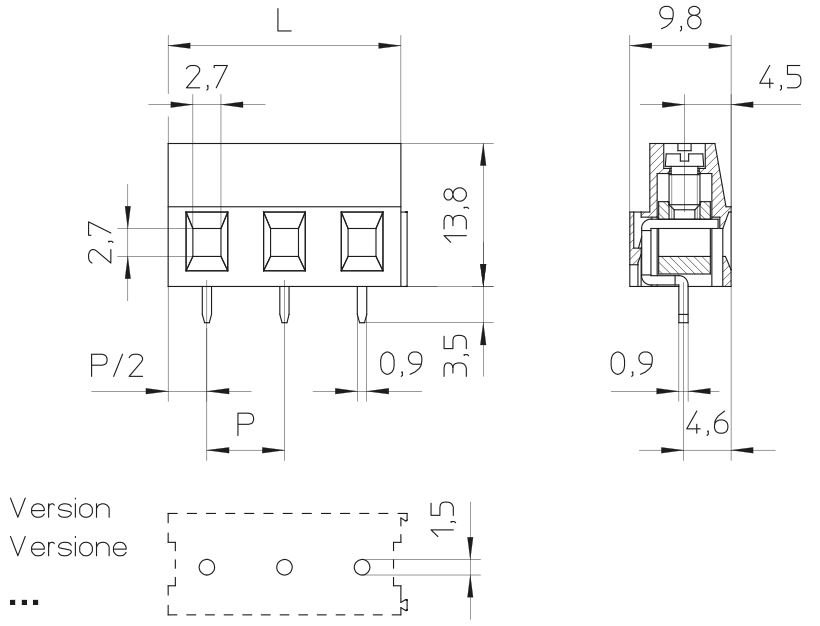

Dimensions and overall dimensions
