8 Digit 7 Segments Display Module with MAX7219
Product Code: 863MAX7219-DIS8
Inventory Status:
out of stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €4.50 | €5.49 |
| 1 | Promo | €4.275 | €5.2155 |
| 5 | 5% | €4.06125 | €4.954725 |
| 10 | 10% | €3.8475 | €4.69395 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

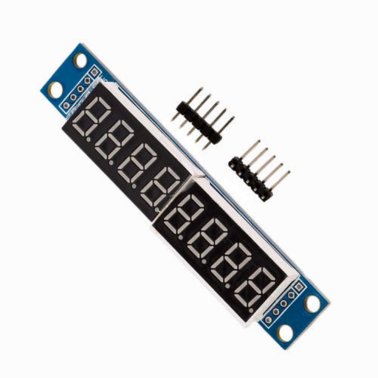

8 Digit 7 Segments Display Module with MAX7219
This display module is compatible with microcontrollers such as Arduino® boards using a conventional 4-wire serial link. The MAX7219 is a serial input display driver, which connects the microprocessor to a 7-segment, 8-digit digital LED display. Any data can be addressed in the update without rewriting all the displays. The MAX7219 also allows the user to select any data encoding or no encoding.The display also has a 150μA low power shutdown mode, analog and digital brightness control, a scan limit register allows the user to view data 1-8 bit.
Technical specifications
- Digits number: 8
- Power supply: 5V
- Interface type: SPI, QSPI, MICROWIRE Serial Interface
- Maximum Clock: 10MHz
- Display Color: Red
- Cascaded Capacity: Can be chained or cascaded to drive unlimited units
- Dimensions: 82 x 15 x 18mm
Connections
| Serial In | Serial Out - for cascade or chained connection |
| VCC | VCC |
| GND | GND |
| DIN | DOUT |
| CS | LOAD |
| CLK | CLK |
Supplied:
A 5-pole straight pin strip and a 5-pole 90 ° pin strip are supplied with the display.
