Chauvin Arnoux CA 6526 Insulation tester 1000V, 200 GOhm with Bluetooth
Product Code: 560CA6526
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €785.00 | €957.70 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Chauvin Arnoux CA 6526 Insulation tester 1000V, 200 GOhm with Bluetooth
CA6526 is a tester for checking the insulation of systems and equipment which allows to prevent failures through preventive maintenance aimed at detecting aging and premature degradation of the insulation parts.
Main features
- Test voltage of: 50V, 100V, 250V, 500V, 1000V up to 200 GΩ
- Manual mode, lock, timer and PI / DAR reports
- Visual indication (red / green) of pass / fail test
- 200mA / 20mA continuity with active protection without fuse
- Measurement of V (TRMS and DC), F, Ω, kΩ, C and cable length
- ΔRel mode and configurable alarms
- Storage for chronological comparison of measurements
- Display Logarithmic bar graph to view insulation measurements
Ergonomic tools for simplified daily use
- Container with safety category of 600V - CAT IV and protection index IP54 / IK04
- Design that allows maximum handling even when wearing insulated gloves, easily operated TEST button
- Magnetic support to fix the instrument on a metal surface, thus leaving the user free of their movements during the measurements.
- Large backlit display with double digital display and logarithmic bargraph, secondary display that displays in real time in addition to the measured value, the real test voltage, the test current and the timer value.
- Remote control with light spot, for perfect identification of measurement points even in poorly lit environments (optional)
- Pass / Fail indicator light Green / Red on model CA 6526, for a direct indication of the test result, even with the buzzer deactivated.
Insulation control
CA6526 is equipped with numerous insulation test voltages between 50V and 1kV. The dynamic insulation measurement goes up to 200GΩ, with compliance with the IEC61557 standard up to 2GΩ. In addition to the manual mode, new insulation test modes are proposed such as the locking mode (Lock), with programmed duration (Timer) as well as the calculation of PI & DAR ratios.
Continuity check
The continuity check function compliant with the IEC61557 standard (current of 200mA), is enriched, on certain models, by a test current of 20mA, which has the advantage, during standard use, of saving the batteries. This function is equipped with active protection in case of voltage presence: fuses are not required.
Adaptability of the measure
On most models of the CA 652X & CA 653x range, it is possible to activate an alarm threshold to be chosen for each measurement, between 2 fixed thresholds and 1 customizable threshold. Furthermore, the ΔREL function allows you to view the measurements in variation with respect to a reference measurement. The display occurs in terms of the variation value and as a percentage of the reference.
Ease of exercise
Measurement analysis is facilitated by the storage of 300 measurements on the instrument. The memory capacity is increased to 1300 locations for the versions with Bluetooth® communication. The Megohmmeter Transfer (MEG) software module, supplied as standard with the communicating versions, allows the remote launch of a test with real-time graphical display, and the transfer of the stored measurements to a PC. The values are then displayed for each type of measurement.

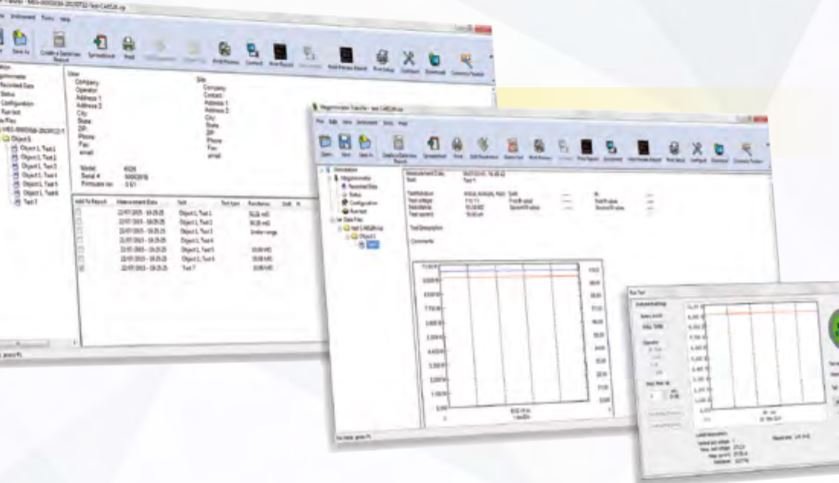

DataView software for data analysis
The DataView® software and its Megohmmeter Transfer module automatically recognize the device as soon as it is connected to the PC, opening the relative menu. The latter, thanks to the hierarchical presentation of the files, offers the user direct access to the data stored on the device and its configuration. The other available functions are:
- Starting remote tests
- Real-time display
- DAR and PI reports
- Graphic layout of the tests
- Generation of measurement reports
Supplied
- case for carrying and hands-free use
- 2 x 1.50m right angle / straight (red and black) safety cables
- red crocodile clip
- a tip
- 6 LR6 or AA batteries
- multilingual operating instructions on CD
- Megohmmeter Transfer software on CD
- quick start guide
- multilingual safety data sheet
