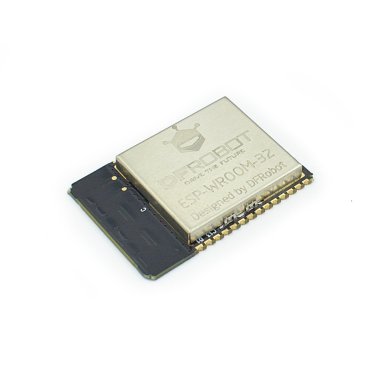

DFRobot TEL0111 Modulo MCU Dual-Core ESP32 WiFi & Bluetooth
Art. #: 863TEL0111
Disponibilità:
disponibile
Quantità | Prezzo | IVA esclusa | IVA inclusa* |
---|---|---|---|
1 | Listino | 7,475 € | 9,1195 € |
1 | Promo | 6,7275 € | 8,20755 € |
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente
- The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.
- Compared to the ESP8266 (the previous generation), the ESP32 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX6 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.
- In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.
- ESP32 chip integrates a wealth of hardware peripherals, including capacitive touch sensors, Hall sensors, low noise sensor amplifiers, SD card interfaces, Ethernet interfaces, high-speed SDIO / SPI, UART, I2S and I2C, etc.
- Engineered for mobile devices, wearable electronics and Internet of Things (IoT) applications, the ESP32 achieves ultra-low power consumption with a combination of several proprietary software applications. The state-of-the-art power saving features include fine resolution clock gating, power modes, and dynamic power scaling.
Specification
CPU and Memory
- Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
- 448 KByte ROM
- 520 KByte SRAM
- 16 KByte SRAM in RTC
- QSPI Flash/SRAM, up to 4 x 16 MBytes
- Power supply: 2.2 V to 3.6 V
Clocks and Timers
- Internal 8 MHz oscillator with calibration
- Internal RC oscillator with calibration
- External 2 MHz to 40 MHz crystal oscillator
- External 32 kHz crystal oscillator for RTC with calibration
- Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
- RTC timer with sub-second accuracy
- RTC watchdog
Advanced Peripheral Interfaces
- 12-bit SAR ADC up to 18 channels
- 2 × 8-bit D/A converters
- 10 × touch sensors
- Temperature sensor
- 4 × SPI
- 2 × I2S
- 2 × I2C
- 3 × UART
- 1 host (SD/eMMC/SDIO)
- 1 slave (SDIO/SPI)
- Ethernet MAC interface with dedicated DMA and IEEE 1588 support
- CAN 2.0
- IR (TX/RX)
- Motor PWM
- LED PWM up to 16 channels
- Hall sensor
- Ultra low power analog pre-amplifier
Development Support
- SDK Firmware for fast on-line programming
- Open source toolchains based on GCC
Operating Temperature Range: -40 ° C to + 85 ° C
Package size: 18mm x 25mm x 3mm
