Diode bridge 35A 1000V Single phase connections to Faston MIC KBPC3510N
Product Code: 140KBPC3510MI
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €3.17 | €3.8674 |
| 5 | 5% | €3.0115 | €3.67403 |
| 10 | 10% | €2.853 | €3.48066 |
| 25 | 15% | €2.6945 | €3.28729 |
| 30 | 20% | €2.536 | €3.09392 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

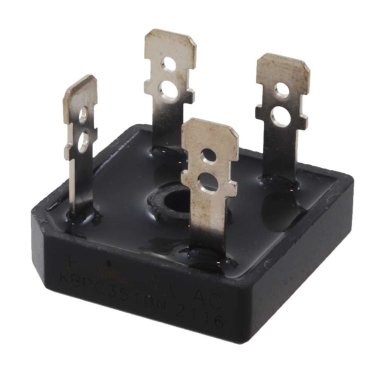

MIC KBPC3510N
The KBPC3510N is a rectifier bridge with 6.35mm solderable FAST ON terminals. The rectifier bridge consists of four silicon junctions connected as a full bridge. It features a 2500 Volt electrically isolated base for maximum heat dissipation
- Maximum Recurring Peak Reverse Voltage (Vrrm): 1000V
- RMS bridge input voltage (Vrms): 700V
- Maximum average direct rectified output current I (AV): 35A with Tc = 50 ° C
- 8.3ms single half sine wave direct peak overcurrent set to rated load Ifsm: 400A
- Operating temperature range: -55 ° C to + 150 ° C
- Maximum reverse current at DC blocking voltage per element with Tj = 25 ° C: 10µA
- The materials used have UL certification
Product codes: KBPC3510, KBPC3510N
