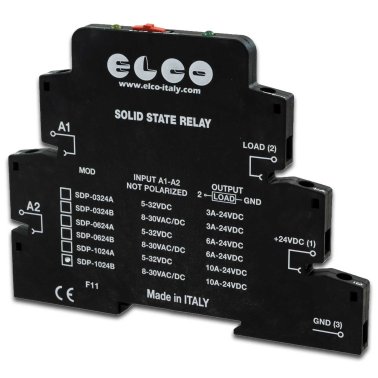

ELCO SDP-1024B SSD Relay Interface Board for PLC 8-30VAC / DC 10A / 24VDC Din-Rail
Product Code: 283SDP-1024B
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €53.87 | €65.7214 |
| 1 | Promo | €48.483 | €59.14926 |
| 3 | 3% | €47.02851 | €57.374782 |
| 10 | 5% | €46.05885 | €56.191797 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
ELCO SDP-1024B
DIN rail solid state relay (SSD) interface module.
- Non-polarized input command
- Input voltage led
- Electronic protection intervention signal led
- For DC models protection against short circuit (Reset with switch for 10A output model), over-load, over-current and over-temperature with restart
- Input signal exclusion by switch
- 2500V input and output isolation
- Output protection from voltage peaks higher than 36V for DC models
- Din bar coupling
Main features
- Type: SSD relay interface
- Control voltage: 8 to 30 Volt AC / DC
- MAX working current: 10 Ampere
- Load voltage: 5.5 to 36 Volts
- Minimum operating current: 1mA
More information can be found in the product datasheet.
Dimensions and overall dimensions
