Encapsulated Transformer ERA 2x115V - 2x6V - 10VA EI48 BV048-5348.0
Product Code: 261EI485348
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €6.48 | €7.9056 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

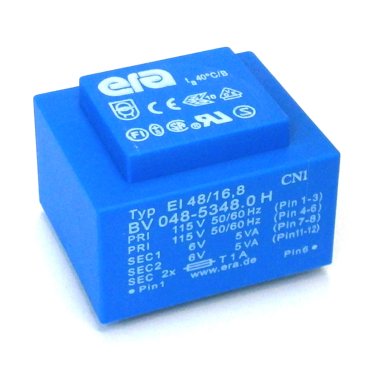

Encapsulated Transformer ERA 2x115V - 2x6V - 10VA EI48 BV048-5348.0
Transformer for PCB mounting, vacuum impregnated.
- Code BV048-5348.0
- Primary: (V) 2x115
- Secondary (V): 2x6
- Frequency 50/60 Hz
- Temperature class ta 40 ° C / B
- Power: 10VA
- Dimensions 50.5 x 42.5 x 34.5 mm
- Weight 295 grams
