Brand:
Finder
S43IT.pdf
(788.79 KB)

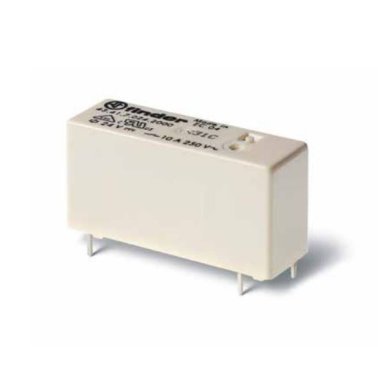

Finder 43.41.7.012.2000 Low-profile relay 12 VDC coil, 3.2 mm pitch
Product Code: 28143417012
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €4.928 | €6.01216 |
| 1 | Promo | €4.1888 | €5.110336 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Low profile electromechanical relay for printed circuit board or socket - 3.2 mm pitch
Finder 43.4.1.7.012 | |
43 | 43 Series |
4 | Printed circuit - 3.2 mm pitch |
1 | One contact, 10 A |
7 | Sensitive DC coil |
012 | Coil nominal voltage |
Contact characteristics
- Contact configuration: 1 exchange
- Rated current / Max instantaneous current: 10A / 15A
- Rated voltage / Max switchable voltage: 250 VAC / 400 VAC
- Rated load in AC1: 2500 VA
- Rated load in AC15 (230 V AC): 500 VA
- Breaking capacity in DC1: 30/110/220: 10 / 0.3 / 0.12 VA
- Minimum switchable load: 300mW (5/5 V / mA)
- Standard contact material: AgNi
Characteristics of the coil
- Nominal supply voltage (UN): 12 VDC
- Rated power: 0.25W
- Operating range: (0.75… 1.5) UN
General characteristics
- Mechanical life: 2 million cycles
- Electrical durability at nominal load in AC1: 100,000 cycles
- Tripping time: on / off: 6 ms / 4 ms
- Insulation between coil and contacts (1.2 / 50 µs): 6 kV (10mm)
- Dielectric strength between open contacts: 1000 VAC
- Ambient temperature: –40… + 85 ° C
Product Codes: 43.41.7.012.2000, 434170122000
