FLUKE 1775 Three-phase Network Analyzer with Wi-Fi, Bluetooth
Product Code: 560FLK-1775
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €9,057.00 | €11,049.54 |
FLUKE 1775 Three-phase Power Quality Analyzer with Ethernet, Wi-Fi, Bluetooth and direct power supply from the network
Main advantages
- It automatically measures and acquires the main Power Quality parameters (harmonics, drops, swings, unbalances, inrush current, etc.)
- Large and bright touchscreen with physical navigation buttons and optimized user interface.
- The setup wizard functionality allows for quick and foolproof installation, as well as the ability to automatically correct measurement connections digitally without having to change the physical probe connections.
- Ability to set up custom views to quickly access the most important tests and data
- Data transfer flexibility (e.g. PC to USB, Wi-Fi, cellular connectivity, USB direct), without interrupting your power quality or energy study.
- Revamped software package (Energy Analyze Plus) for modern and intuitive data analysis and reporting
Automatic measurements, Greater flexibility, Improved power quality troubleshooting.
Fluke 1770 Series Power Quality and Three-Phase Network Analyzers eliminate the complexities of logging power quality, troubleshooting, and analysis. Designed to perform power quality studies as quickly and easily as possible, the 1770 Series offers automated measurements, a clear user interface and configuration, state-of-the-art specifications, and a streamlined reporting platform. The meter can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a long extension cable. With the 1770 series, you'll never miss an important power quality event, from fast transients up to 8kV, harmonics up to 30kHz, dips and swells, as well as voltage, current and power measurements to help characterize your electrical system.
Automatic acquisition of measurements
Whether it's running a quick system check or a detailed power quality study, data consistency is key. The Fluke 1770 Series offers a unique automatic measurement capture system that allows you to always collect the correct data, while giving you the flexibility to select and adjust specific parameters as needed. By default, more than 500 power quality parameters are captured, and the configuration wizard makes it easy to select the correct parameters for the system you are working on. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software, so there is no need to wait for a session to complete before reviewing results or analyzing data.
Maximum measurement reliability
The Fluke 1770 series consists of 2-in-1 devices that combine the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer, in one easy-to-use portable device. The "PQ Meter" feature gives you instant access to real-time data displayed in the field, so you can quickly identify potential problems during troubleshooting. The detailed power quality analysis and logging feature eliminates the complexity of running power quality studies by guiding you through the configuration process, ensuring that you are always getting the right data. By combining these measurement modes with a unique self-correcting function for the measurement connection, you won't need to perform a second measurement, even if you were not sure what to look for initially.

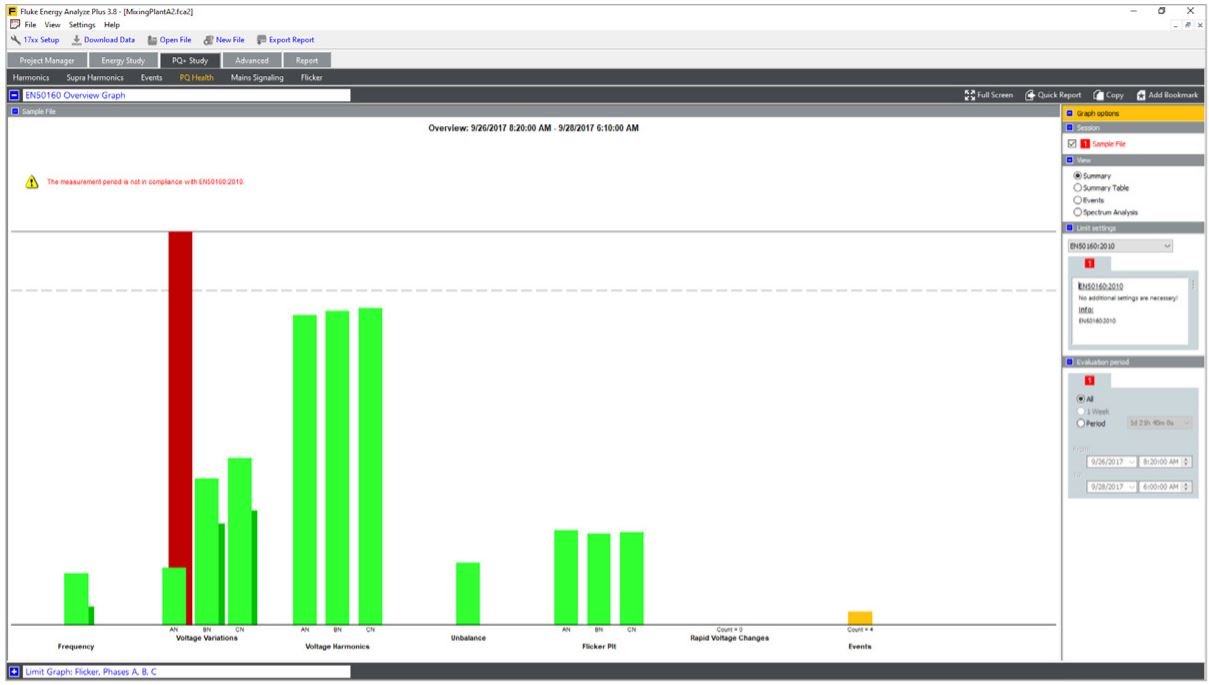

Powerful analysis software with easy-to-create reports
The Fluke 1770 Series Power Quality Analyzers come with powerful Fluke Energy Analyze Plus software, designed to eliminate problems encountered with other multipurpose application software. Energy Analyze Plus allows you to evaluate power quality data right out of the box and without in-depth training. Download, analyze, monitor and report power quality and energy data easier than ever. Quickly compare results to historical values, evaluate industry norms, compare measured data to local conditions, and create a more complete picture of what's going on inside the facility, even if the data is still being captured. Energy Analyze Plus provides unified support for Fluke 1730 Series Energy and Power Loggers, 1740 Series Power Quality Loggers, and 1770 Series Power Quality Analyzers
- Download of "in office" and "on site" via PC application software
- Simple data downloads via USB stick, WiFi, LTE, wired Ethernet or USB cable
- Analyze all the measured details of energy consumption and power quality health with an automated reporting system
- One-touch reporting function creates reports compliant with EN 50160, IEEE 519, GOST 33073 IEC 61000-2-2 standards, or allows you to export data in PQDIF or NeQual or CSV compatible format for use with third party software
- Advanced analytics allows the user to choose any available logged parameter and create a highly customized view of the measurements for advanced data correlation
Acquisition of high-speed voltage transients
Transients negatively impact otherwise healthy systems, and their ability to damage equipment cannot be underestimated. Regardless of whether the system experiences impulsive or oscillatory transients, the results can be severe and cause problems ranging from insulation failures to total equipment failures. The Fluke 1775 and Fluke 1777 models use advanced transient capture technology that allows you to clearly identify high-speed voltage transients, so you have the data you need to stop them during monitoring. The Fluke 1775 Power Quality Analyzer features 1 MHz sampling capability to capture fast transients, while the Fluke 1777 Power Quality Analyzer features 20 MHz sampling capability to capture the fastest transients in detail.
Calculation of the limits of the current harmonics
When data is downloaded from the Fluke 1770 Series Power Quality Analyzers, the included Energy Analyze Plus software package can compare the measured voltage and current harmonics statistical data with different standards, such as EN 50160 or IEEE 519, to determine if they exceed the Compliance limits. Powerful predictive maintenance features allow you to locate current harmonics before distortion appears on the voltage; this helps prevent unexpected failures or non-compliance situations, thus increasing the operating time. With the proliferation of inverter-based loads and power generation, keeping current harmonics in check is becoming increasingly important to ensure reliable power quality and avoid system downtime.
Work where, when and how you want
In the field, no two days are alike. You need a power quality analyzer that you can use anywhere and perform the necessary tasks at any time. With a full range of accessories and built-in features, the Fluke 1770 series makes your job easier. The slim, ergonomic design and integrated wrist strap make it easy to grip, while the included docking kit allows you to easily secure the analyzer inside a cabinet. The built-in internal power supply allows you to power the unit directly from the measured circuit, while a 90-minute battery allows you to access and review data even when not connected to an active system. Quick and easy data transfer to your PC via USB C, USB A, Ethernet, WiFi and mobile network support options as needed. With an internal GPS module and an optional double-insulated external antenna, data can be synchronized in real time for more precise troubleshooting and analysis.
Supply details
- Product: FLUKE-1775, 0095969917674, 1775, FLK-1775, 5117278
- 1x Fluke-1775, power quality analyzer
- 4x i17xx-Flex1500 24, Fluke-17xx iFlex 1500 24 in, 2m
- 1x Fluke-17xx, flat cable, 3 phase voltage test cable + no
- 4x AC285, black alligator clip
- 1x AC285, green alligator clip
- 1x 1m black USB-C cable
- 1x power cable
- 1x FLK-17xx 0.18m Nonstack / Stack Test Lead Set
- 1x green test lead
- 1x MP1-3R / 1B, 1 magnetic probe, 3 red / 1 black magnetic probe for 4mm banana plug
- 1x Fluke-174x Hook Kit
- 1x Fluke-177x-4204 Wi-Fi / BLE module
- 1x tracer set (for voltage and current)
- 1x Fluke-174x-ma-c8 wall socket adapter
- 1x declaration of calibration practices
- 1x black soft case
