Marca:
RENESAS
csHIP-4..x_e.pdf
(221.94 KB)

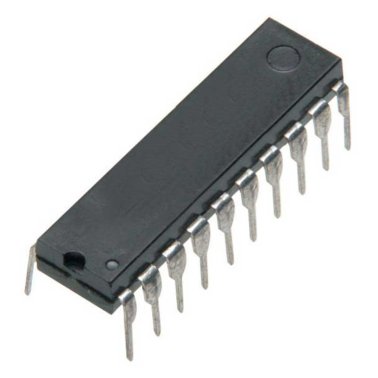

HIP4081AIPZ Driver di potenza, ponte intero, alim 9,5V-15V, 2,6A out, ritardo 30ns, DIP-20
Art. #: 230HIP4081AIPZ
Disponibilità:
disponibile
| Quantità | Prezzo | IVA esclusa | IVA inclusa* |
|---|---|---|---|
| 1 | Listino | 7,10 € | 8,662 € |
| 1 | Promo | 6,745 € | 8,2289 € |
| 5 | 5% | 6,40775 € | 7,817455 € |
| 10 | 10% | 6,0705 € | 7,40601 € |
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente
HIP4081AIPZ
The HIP4081AIPZ is a high frequency, medium voltage Full-bridge N-channel FET Driver IC. It can drive every possible switch combination except those which would cause a shoot-through condition. This can switch at frequencies up to 1MHz and is well suited to driving voice coil motors, high-frequency switching power amplifiers and power supplies and can drive medium voltage brush motors. Short propagation delays of approximately 55ns maximizes control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in rapid, precise control of the driven load.- Configurazione uscita: Semiponte, ponte intero
- Applicazioni: Motori c.c., uso generale
- Interfaccia: Logica, PWM
- Tipo di carico: Capacitivo e resistivo
- Tecnologia: MOSFET a canale N
- Current - Uscita di picco: 2,6A
- Tensione - Alimentazione: 9,5V ~ 15V
- Tensione - Carico: 8V ~ 15V
Codici Prodotto: 9664130, HIP4081AIPZ, 2000000459790, 045979
