Hirschmann CA6LS Male Connector IP67 7 poles
Product Code: 326CA6LS
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €9.855 | €12.0231 |
| 5 | 10% | €8.8695 | €10.82079 |
| 10 | 20% | €7.884 | €9.61848 |
| 20 | 30% | €6.8985 | €8.41617 |
| 50 | 45% | €5.42025 | €6.612705 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

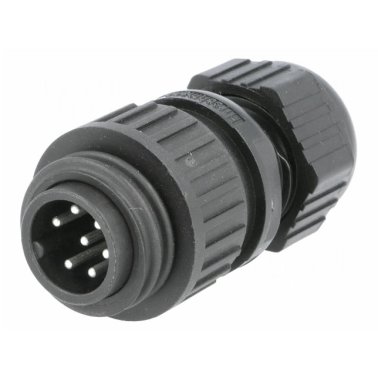

Hirschmann CA6LS Male Connector IP67 7 poles
The Hirshmann CA6LS connector is a circular flying cable plug suitable for network connection with 6 contacts + PE. Like all circular connectors for industrial use, the CA series connectors are suitable for use in harsh environments where high reliability, robustness and resistance to vibrations and dirt are required. The screwable flange allows a reliable and protected connection.
Features
- Number of contacts: 6 + PE
- Degree of protection: IP67
- Maximum cable section: 0.75 mm²
- Rated voltage: 250 VDC / VAC
- Rated current: 10A DC / AC
- Housing material: PA 66-GF 25
- Complies with VDE, UR, SEV and CSA standards
- Contacts: brass with silver plating
- Screw connection
Hirschmann Product Codes: CA6LS, CA 6 LS, 4002044182106, 934 126-100, 934126100
