Eliwell IDNext 961 IDN961P7D107000 Thermoregulator PTC - NTC 230VAC
Product Code: 560IDN961P7D107000
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €58.40 | €71.248 |
| 1 | Promo | €49.64 | €60.5608 |
| 3 | 5% | €47.158 | €57.53276 |
| 6 | 10% | €44.676 | €54.50472 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

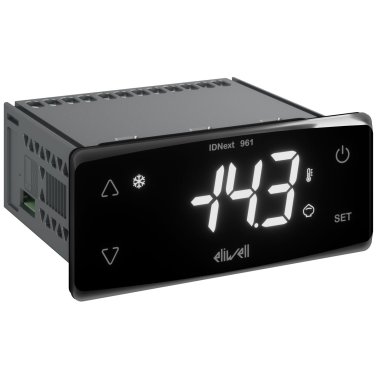

Eliwell IDNext 961 Thermostat 32x74 for PTC / NTC 230 Volt AC probes
IDNext controllers are new generation thermostats for refrigeration equipment.
- INTUITIVE USER INTERFACE
Available from any device via optional Bluetooth Dongle - SIMPLIFIED SETTINGS AND SUPPORT
Sharing the configuration map - MANAGEMENT OF LOCAL DATALOGGING
Downloading and sharing of stored data
- Net width (L) 81 mm
- Net height (Ht) 35 mm
- Net depth (P) 60 mm
- Panel installation: 71x29 mm
Technical data
Precision:
- NTC: better than 0.5% of full scale + 1 digit
- PTC: better than 0.5% of full scale + 1 digit
- Pt1000 [-55.0… + 70.0 ° C]: better than 0.5% of full scale + 1 digit
- Pt1000 [+ 70.0… + 150.0 ° C]: better than 1% of the full scale + 1 digit
Display range:
- NTC probe: -50.0 ... + 110.0 ° C
- PTC probe: -55.0 ... + 140.0 ° C
- Pt1000 probe: -55.0 ... + 150.0 ° C
- Display: 3-digit LED + sign
- Analog inputs: 1x PTC or NTC or Pt1000
- Digital inputs: 1x SELV
- Digital outputs: 1x SPST 2Hp 12 (8) A 230Vac
- Connectivity: TTL port for Unicard connection or TelevisSystem ModBus supervisor
- Power supply: 230 VAC
- Absorption: 5.5 VA
Connection Diagram
Product Codes: Eliwell - Schneider Electric IDN961P7D107000, 3606481900210
