HF-2211 RS232 / RS422 / RS485 Serial Converter Interface - Ethernet WiFi
Product Code: 840HF2211
Inventory Status:
discontinued
⚠️ ATTENTION OBSOLETE PRODUCT⚠️
Find the latest version of the product here 👉 HF-2211A RS232/RS422/RS485 Serial Converter Interface - Ethernet WiFi
Find the latest version of the product here 👉 HF-2211A RS232/RS422/RS485 Serial Converter Interface - Ethernet WiFi

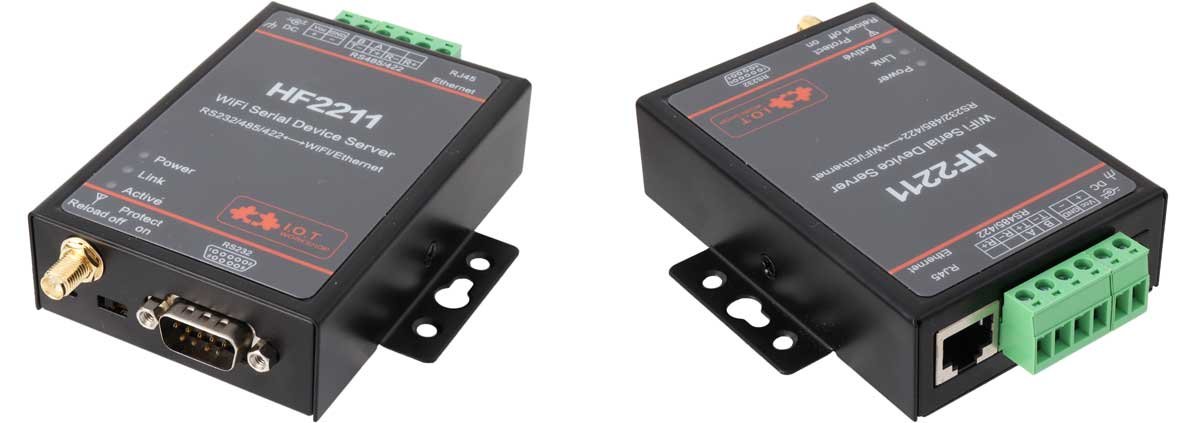

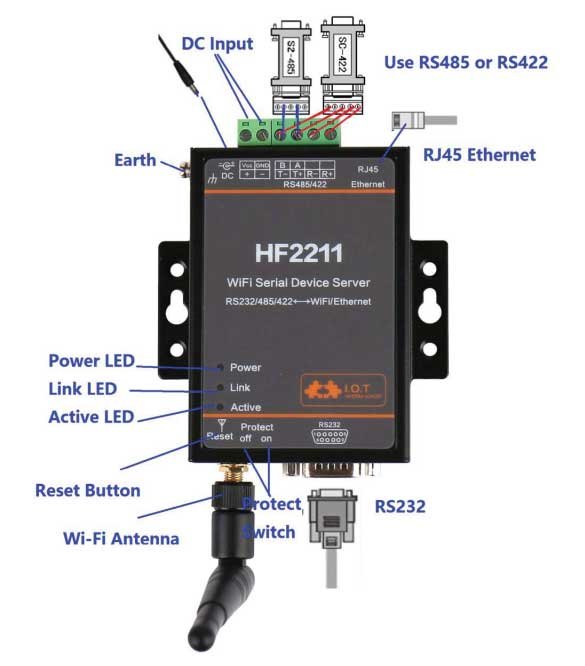

HF2211 WiFi Serial Device Server
The HF2211 provides RS232/RS485/RS422 interface to Ethernet/Wi-Fi connectivity for the web. It integrates TCP/IP controller, memory, 10/100M Ethernet transceiver, high-speed serial port and also integrates a fully developed TCP/IP network stack and ECos OS. The HF2211 also includes an embedded Web server used to configure, monitor, or troubleshoot the connected device.
It uses a highly integrated hardware and software platform and has been optimized for all kinds of applications in industrial control, smart grid, personal medical application and remote control which have lower data transmission speed and transmit or receive data on an infrequent basis.
Applications
- Remote monitoring of equipment
- Asset Tracking and Telemetry
- Security Application
- Industrial Sensors and Controls
- Medical devices
- ATM
- Data collection devices
- Universal Power Supply (UPS) Management Unit
- Telecommunications equipment
- Data visualization devices
- Portable tools
- Modem
- Time clocks and attendance terminals
Technical Features
- MIPS MCU with 4 MB of flash memory and 8 MB of SRAM
- Supports ECos operating system
- Support TCP/IP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, Auto IP, ICMP, Telnet, FTP, TFTP, uPNP, NTP, ModbusTCP protocol
- Support serial to 10/100M Ethernet conversion, serial speed up to 460800bps
- Support 10/100M Ethernet auto-negotiation
- Support STA/AP/AP+STA wireless working mode
- Supports simple configuration via a web interface
- Supports security protocols such as SSL / AES / DES3
- Support wireless web upgrade
- Wide power supply 5~36V DC or 9~50V DC
- Dimensions: 95 x 65 x 25 mm (W x D x H)
- FCC / CE / RoHS certified
Package Contents:
1 x HF2211 WiFi Serial Device Server, 1 x 100/240VAC power supply, 1 x external antenna with magnetic base, 1 x LAN cable, 1 x 9-pin F/F serial cable.
Product Codes: HF2211, HF-2211, 2000000704043
