LEM AL20 Power Supply Inserter for LEM Multiswitch
Product Code: 584AL20
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €37.00 | €45.14 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

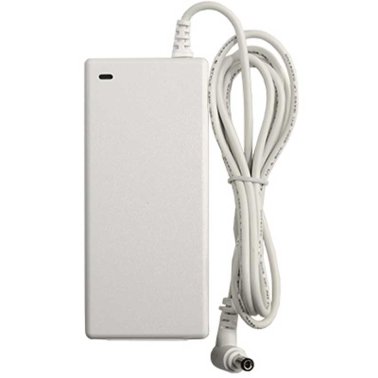

LEM AL20 Power supply for Multiswitch
High power and low noise switching power supply specific for powering SCW and SCX series dCSS multiswitches.
- Low Ripple & Noise values
- Short circuit protection
- Overvoltage protection
- Overload protection
- Operation Status Led
- Soft Start ignition
Technical specifications
- Input voltage: 100 ... 240 VAC 50/60 Hz
- Input Current: 1.5 A MAX.
- Output Voltage: 20 VDC ± 3%
- Maximum Output Power: 45 Watts
- Maximum Output Current: 2.25A
- Input cable: 1.200 mm EURO PLUG - IEC 320-C8
- Exit den: 1,200 mm PLUG 2.1 X 9.5 mm
- Dimensions: 116 X 52 X 33 mm
