Lindy 38208 HDMI 4K UHD Extender and IR signal over Cat.6 LAN network cable up to 70 meters
Product Code: 84038208
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €84.8076 | €103.465272 |
| 1 | Promo | €76.32684 | €93.118745 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

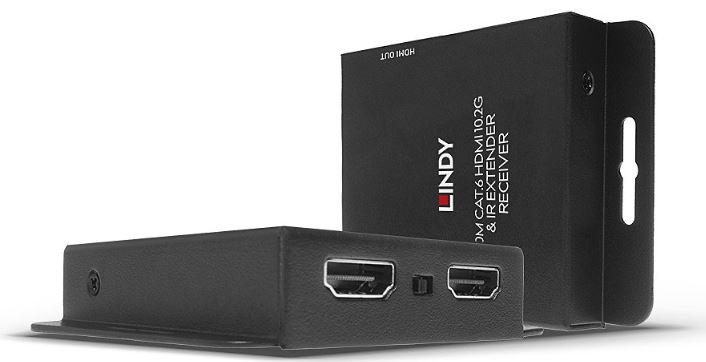

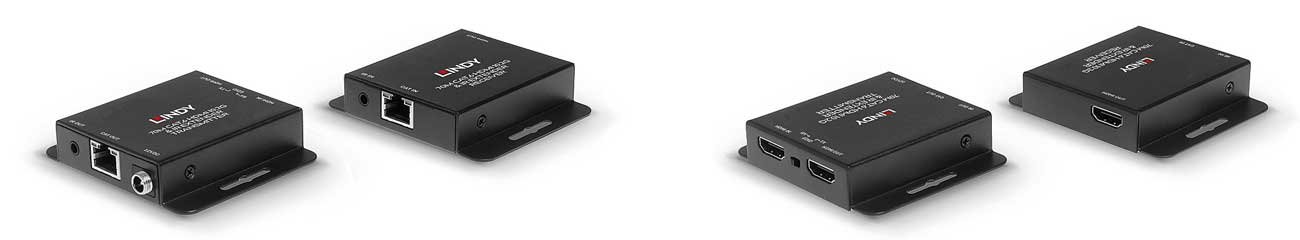

Lindy 38208 HDMI 4K UHD & IR extender over Cat.6 LAN network cable up to 70m
Lindy's HDMI 10.2G & IR Cat.6 Extenders with PoC & Loop Out, 70m are an easy-to-use solution that allows the user to extend HDMI signals up to 70m using a single U / UTP Cat.6 U / UTP (not included). For added convenience, the IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting 4K resolutions up to 3840x2160 @ 30Hz 4: 4: 4 8bit, video content can be displayed with incredible clarity at distances up to 70m, perfect for use in a variety of AV and digital signage applications in a range of contexts that includes residential, education, business, retail and healthcare facilities.
This extender features an HDMI loop-out port on the transmitter for simultaneous local viewing , so you can connect a local display for monitoring or to create an additional viewing zone. To ensure maximum compatibility when two displays are connected, EDID data, which determines the supported video and audio formats, can be copied from both the local display connected to the transmitter and the remote display connected to the receiver.
Power over Cable (PoC) technology allows extenders to operate from a single power supply connected to the transmitter , allowing the receiver to be placed where access to power outlets is limited - ideal in minimalist and discreet installations.
In addition to PoC functionality, the slim design of the extenders allows for easier installation in confined spaces behind flat screen monitors or televisions.
Note: The indicated lengths and resolutions are possible with a direct connection between the Transmitter and Receiver using a good quality Cat.6 solid core cable. The use of a different type of cable, or the introduction of wall plates, couplers or connection panels, will result in a reduction of the possible distances.
In short
- Extends HDMI & IR signals up to 70m using a single Cat.6 cable
- Supports resolutions up to 3840x2160 @ 30Hz 4: 4: 4 8bit
- It has an HDMI loop-through output on the transmitter for local control
- Support power supply via network cable, only one power supply is needed
- 2 year guarantee
Specifications
- AV interface: HDMI
- Interface Standard: HDMI 1.4
- Supported Bandwidth: 10.2Gbps
- Maximum Distance: 70m (229.66ft) - 1920x1080 @ 60Hz, 40m (131.23ft) - 3840x2160 @ 30Hz 4: 4: 4 8bit
- Maximum Resolution: 3840x2160 @ 30Hz 4: 4: 4 8bit
- HDCP Support: HDCP 1.4
- EDID Pass Through: EDID Copy Functionality
- Audio Support: Up to 7.1 (through)
- Separate Audio Ports: -
- IR support: 20-60kHz
- CEC Support: -
- Serial Interface: -
- Transmission Protocol: -
- Transmission Medium: 1 x Cat.5e / 6 or higher
- Chipset: GSV1001
- Special Functions: PoC (Power over Cable), IR pass-through, Loop Out
Connectors
- Transmitter Inputs: HDMI Type A (Female)
- Transmitter Outputs: HDMI Type A (Female), RJ45 (Female), IR (Female)
- Receiver Inputs: RJ45 (Female), IR (Female)
- Receiver Outputs: HDMI Type A (Female)
- Bidirectional Doors: -
- Power supply: 5.5 / 2.1mm
Physical characteristics
- Dimensions (approx.) WxHxD: 79.5x16.5x69mm (3.13x0.65x2.72in)
- Shell material: Metal
- Net Weight: 0.13kg (0.29lb) per unit
- Operating Temperature: 0 ° C - 40 ° C (32 ° F - 104 ° F)
- Storage Temperature: -20 ° C - 60 ° C (-4 ° F - 140 ° F)
- Humidity: 20 - 90% RH (non-condensing)
- Current Draw: 12VDC 1A
- Black colour
