![Male connector 9 poles 2.5mm pitch from vertical PCB EXCON 250109WV001](/media/cache/attachment/filter/product_gallery_main/cfd646b508e8eaf0ad3fa52d426f48a6/40171/62fcc53c42da2803737827-EXCON-250109WV001.jpg)
Brand:
Excon Technology
Male connector 9 poles 2.5mm pitch from vertical PCB EXCON 250109WV001
Product Code: 325EX2501WV-9P
Inventory Status:
in stock
Quantity | Price | VAT excluded | VAT included |
---|---|---|---|
1 | Default | €0.19958 | €0.243488 |
10 | 10% | €0.17962 | €0.219136 |
50 | 20% | €0.15966 | €0.194785 |
100 | 30% | €0.13971 | €0.170446 |
1000 | 60% | €0.07983 | €0.097393 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
EXCON 250109WV001 Board-Wire connector 9 poles pitch 2.50mm
Main features
- Number of routes: 9
- Pitch: 2.50mm
- Current: 3A AC / DC
- Voltage: 250V AC / DC
- Cable: AWG 28 ÷ 22
- Body: Nylon 66 UL94V-0 natural color
- Male terminals: tinned brass
- Temperature range: -25 ° C ÷ 105 ° C

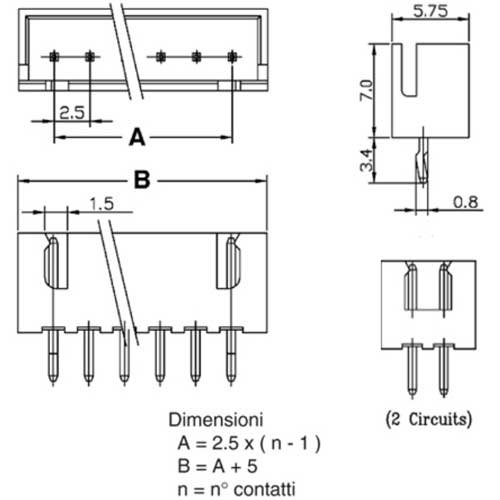

![EXCON EX2501 dimensions](/media/cache/attachment/filter/wysiwyg_original/1ce6569ddaa67bc2162be5030a1ac716/40175/62fcc8b1708e5056252340-EXCON-2501-dimensions.jpg)
NOTE: This is a similar product to JST B9B-XH-A (LF) (SN), Multicomp MP001802 connectors.
Product codes: 250109WV001, EX2501WV-09P, J2501409-R, 2000000576664
