Novotechnik TS 50 50 mm linear position sensor
Product Code: 102TS50
Inventory Status:
out of stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €270.2779 | €329.739038 |
| 1 | Promo | €256.76401 | €313.252092 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

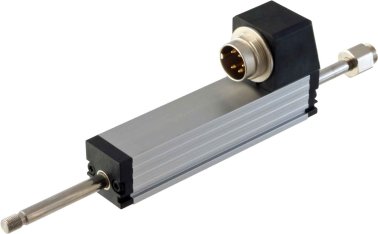

Novotechnik TS 50 50 mm linear position sensor
Linear position transducer with 50 mm stroke, 5 KOhm value with 5-pole DIN connector.
Main features
- Linearity (±) 0.15%
- Resistance 5 kOhm
- Tolerance 20%
- Stroke length - Electric 50 mm
- Stroke length - Mechanics 55 mm
- Operating voltage, max. 42 V
- Movement speed 10 m / s
- Termination Type Connector, 5-pin
- Degree of protection IP40
- Operating temperature, min. -30 ° C
- Operating temperature, max. 100 ° C
Product codes: TS50, TS 50, TS-50, TS-0050. 023233, TS-50 023233
