Brand:
Omega Fusibili
I30xx d..eet.pdf
(1.54 MB)

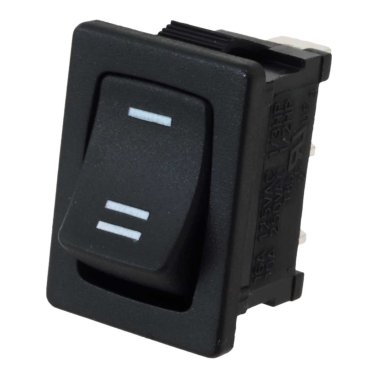

Rocker Switch Mini Rocker Switch Unipolar 10A 250V Black
Product Code: 301I3020
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €2.88 | €3.5136 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Unipolar black toggle diverter with I - II indications
Main features
- Electric rating:
16A -125V 1 / 3HP 125 Volt AC
10A - 250V 1 / 2HP 250 Volt AC - Contact Resistance: 50 milliOhm Max
- Insulation Resistance: 500 Volt DC 100 MegaOhm Min
- Dielectric insulation: 1500 Volt AC - 1 minute
- Connection terminals: 4.8 mm Faston
- Material: Casing in UL flame 94V-2 Nylon. Terminals: silver plated brass

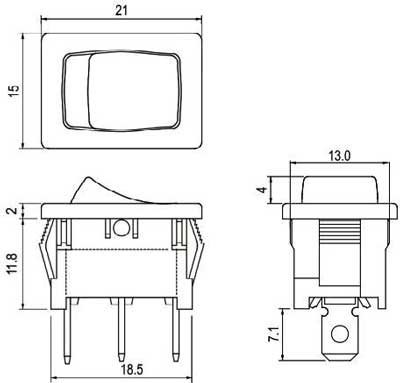

Dimensions and overall dimensions
Product codes: KB06648C0BB, KB 066 48 C0BB, I3020, R13-66
