Marca:
Neutrik
Product.._1_.pdf
(7.31 MB)

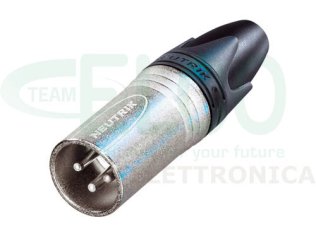

Spina pipa 90° XLR 3 poli Neutrik NC3MRX
Art. #: 323NC3MRX
Disponibilità:
disponibile
| Quantità | Prezzo | IVA esclusa | IVA inclusa* |
|---|---|---|---|
| 1 | Listino | 10,19 € | 12,4318 € |
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente
Spina a pipa 90° professionale volante XLR 3 poli con terminali a saldare, contenitore robusto in zinco pressofuso e contatti argentati. Adatto per realizzare cavi di collegamento di sorgenti, mixer, amplificatori e diffusori attivi.
CARATTERISTICHE (inglese)
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
SPECIFICHE (inglese)
- Capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 3 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: 7,5 A
- Rated voltage: 50 V
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.0 mm²
- Wiresize: max. 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Boot: Polyurethan
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
