Stelvio MRT3P5 / 4 Disconnectable Female Clamp 4 poles 5mm pitch 20A 300V
Product Code: 324MRT3P5-4
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1.55057 | €1.891695 |
| 1 | Promo | €1.47304 | €1.797109 |
| 10 | 10% | €1.32574 | €1.617403 |
| 50 | 25% | €1.10478 | €1.347832 |
| 100 | 35% | €0.95748 | €1.168126 |
| 200 | 40% | €0.88382 | €1.07826 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

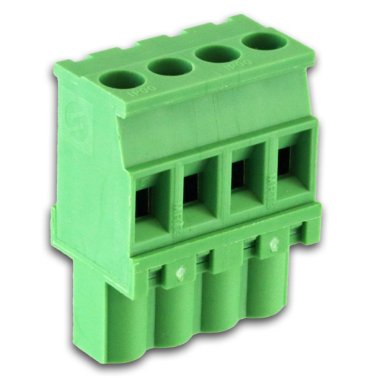

Stelvio MRT3P5 / 4
4-pole 5mm pitch detachable female terminal block
Female connector with 3-pole 5mm pitch carriage terminal for disconnectable terminal.
Technical features
- Number of routes: 4
- Pitch: 5 mm
- Mounting: PTH (PCB)
- Nominal voltage: 300 Volt UL (320 Volt VDE)
- Rated current: 20 Ampere (VDE)
- Wire Section: 30-12AWG, 0.2-2.5mm² sol / str 4.0mm² sol
- Unmissable Screw: M3
Dimensions and dimensions
