Tianli ..03V.pdf
(319.31 KB)
Terminal 2 poles 5mm pitch Tianli TL203V-02P Height 10mm
Product Code: 324TL203V-2
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €0.32 | €0.3904 |
| 1 | Promo | €0.256 | €0.31232 |
| 50 | 10% | €0.2304 | €0.281088 |
| 150 | 20% | €0.2048 | €0.249856 |
| 300 | 40% | €0.1536 | €0.187392 |
| 1200 | 50% | €0.128 | €0.15616 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

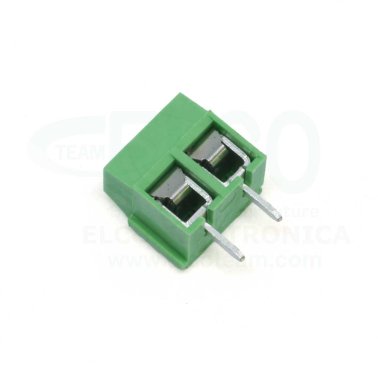

Tianli TL203V-02P-G12S 2-pole modular PCB terminal block
Vertical modular screw terminal block to be placed side by side with a 5mm pitch printed circuit. Lamella contact with cable protector. Available in 2 and 3 pole versions.
Technical features
- Number of routes: 2
- Pitch: 5 mm
- Height: 10mm
- Mounting: PTH (PCB)
- Rated voltage: 250 Volt DC (450 Volt CQC)
- Nominal current: 16 Ampere
- Cable section: 26-12AWG, 2.50mm²
- PCB hole: Φ1.4-1.6mm
- Green colour
- Screw: M2.5 slotted screwdriver
