Fluke 117 TRMS Digital Multimeter
Product Code: 560117
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €349.00 | €425.78 |
| 1 | Promo | €277.86885 | €338.999997 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Fluke 117 TRMS Digital Multimeter

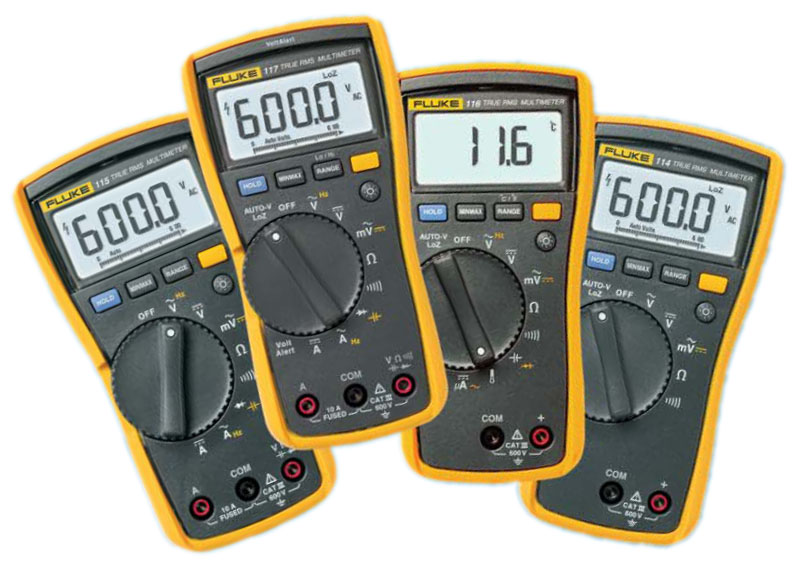

The 110 Series consists of five true RMS digital multimeters, each designed for specific needs. These compact instruments can be used with one hand and feature a backlit display with large digits for immediate reading.
The 117 model is recommended for electricians working in public and private structures (such as schools, hospitals). It features additional features such as non-contact voltage detection for fast and safe operation.
FLUKE 117 TECHNICAL SPECIFICATIONS
|  |
 |  |
FLUKE 117 SPECS
| FUNCTION | MAXIMUM | RESOLUTION | PRECISION |
| DC voltage | 600V | 1 mV | ±(0.5%+2) |
| AC voltage | 600V | 1 mV | ±(1.0%+3) |
| DC current | 10 A | 1mA | ±(1.0%+3) |
| AC current | 10 A | 0.01A | ±(1.5%+3) |
| Resistence | 40MΩ | 0.1Ω | ±(0.9%+1) |
| Capacity | 10000μF | 1 nF | ±(1.9%+2) |
| Frequency | 50KHz | 0.01Hz | ±(0.1%+2) |
(Full specifications in the attached datasheet)
- Battery type: 9V alkaline, typical life 400 hours
- Dimensions (HxWxD): 167mm x 84mm x 46mm
- Weight: 0.55kg (including batteries)
- Warranty: 3 years
SUPPLIED
- Test leads with 4mm spring loaded terminals and protected tip
- Shell
- 9V battery installed
- User manual
COMPARISON BETWEEN 110 SERIES MODELS
113 | 114 | 115 | 116 | 117 | |
| True RMS measurements | B.C | B.C | B.C | B.C | B.C |
| Resolution (n. points) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Backlight | ● | ● | ● | ● | ● |
| Analog histogram | ● | ● | ● | ● | ● |
| AutoVolt: automatic selection of AC/DC voltage | ● | ● | ● | ||
| VoltAlert: non-contact voltage detection | ● | ||||
| Built-in thermometer for HVAC applications | ● | ||||
| LoZ: low input impedance for the prevention of parasitic voltages | ● | ● | ● | ||
| VCHECK LoZ: low impedance to measure voltage or continuity simultaneously | ● | ||||
| Min/Max/Average functions to record signal fluctuations | ● | ● | ● | ● | ● |
| Resistance, continuity | ● | ● | ● | ● | ● |
| Frequency, capacitance and diodes | -/ ●/ ● | ● | ● | ● | |
| MicroAmpere measurement for flame sensors | ● | ||||
| "Display Hold" function | ● | ● | ● | ● | ● |
| Automatic and manual range selection | ● | ● | ● | ● | ● |
| Low battery indication | ● | ● | ● | ● | ● |
| Removable shell | ● | ● | ● | ● | ● |
