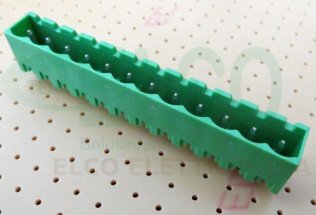

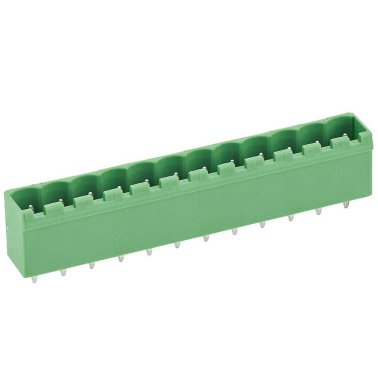

Vertical Male Connector 12 poles 5mm pitch Tianli TLPHC-200V-12P
Product Code: 324TLPHC-200V-12
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1.2688 | €1.547936 |
| 1 | Promo | €1.14192 | €1.393142 |
| 10 | 10% | €1.02773 | €1.253831 |
| 100 | 20% | €0.91354 | €1.114519 |
| 500 | 30% | €0.79934 | €0.975195 |
| 1000 | 50% | €0.57096 | €0.696571 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Tianli TLPHC200V1112-12PG12
Vertical Male Connector 10 ways 5mm pitch
Vertical Male Connector 10 poles 5mm pitch for disconnectable terminal.
Technical features
- Number of routes: 12
- Pitch: 5 mm
- Mounting: PTH (PCB)
- Nominal voltage: 300 Volt UL (320 Volt VDE)
- Nominal current: 20 Ampere
- PCB hole: Φ1.6-1.7mm
- Green colour
- Connector similar to: Stelvio CPM5 / 12
Dimensions and overall dimensions
