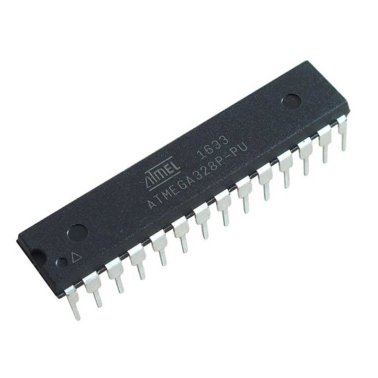

ATMEGA328P-PU Microcontroller 8bit 20MHz 32kB Flash PIDIP 28 pin ATMEL Microchip
Product Code: 230ATMEGA328P-PU
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €4.64 | €5.6608 |
| 1 | Promo | €4.176 | €5.09472 |
| 5 | 5% | €3.9672 | €4.839984 |
| 10 | 10% | €3.7584 | €4.585248 |
| 25 | 15% | €3.5496 | €4.330512 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
ATMEGA328P-PU
The high-performance picoPower 8bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general purpose I / O lines, 32 general purpose working registers, three flexible timer / counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A / D converter (8-channels in TQFP and QFN / MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.
- High performance, low power AVR® 8bit microcontroller family
- Advanced RISC Architecture
- High endurance non-volatile memory segments
- Atmel® QTouch® library support
- Peripheral Features
- Special Microcontroller Features
Main features
- AVR core processor
- Core size 8 bit
- 20MHz speed
- I²C, SPI, UART / USART connectivity
- Peripherals Brownout Detection / Restore, POR, PWM, WDT
- No. of I / O 23
- Program memory size 32KB (16K x 16)
- FLASH program memory type
- 1K x 8 EEPROM size
- RAM size 2K x 8
- Voltage - Power supply (Vcc / Vdd) 1,8V ~ 5,5V
- 6x10b A / D data converters
- Internal oscillator type
- Case type PDIP-28 7.62mm
Product codes: ATMEGA328P-PU
