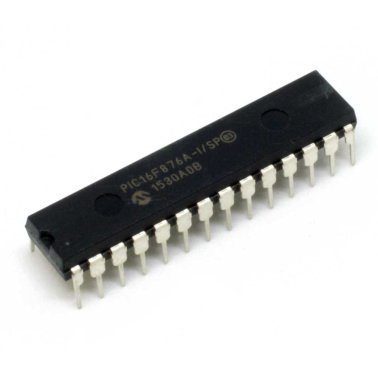

Microchip PIC16F876A-I/SP Microcontrollore a 8 bit
Art. #: 230PIC16F876
Quantità | Prezzo | IVA esclusa | IVA inclusa* |
---|---|---|---|
1 | Listino | 4,9644 € | 6,056568 € |
1 | Promo | 4,21974 € | 5,148083 € |
15 | 10% | 3,79777 € | 4,633279 € |
45 | 20% | 3,37579 € | 4,118464 € |
90 | 30% | 2,95382 € | 3,60366 € |
Microchip PIC16F876A-I/SP Microcontrollore a 8 bit
The PIC16F876A-I/SP is a 8-bit enhanced Flash Microcontroller with low-power, high-speed flash/EEPROM technology. It features 256bytes of EEPROM data memory, self programming, an ICD, 2 comparators, 5 channels of 10-bit Analogue-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire serial peripheral Interface (SPI™) or the 2-wire inter-integrated circuit (I²C™) bus and a universal asynchronous receiver transmitter (USART). The data EEPROM, flash program memory is readable and writable during normal operation (over the full VDD range). This memory is not directly mapped in the register file space. Instead, it is indirectly addressed through the special function registers. All devices have a host of features intended to maximize system reliability, minimize cost through elimination of external components, provide power saving operating modes and offer code protection.
- Synchronous serial port (SSP) with SPI (master mode) and I²C™ (master/slave)
- Universal synchronous asynchronous receiver transmitter (USART/SCI) with 9-bit address detection
- Brown-out detection circuitry for brown-out reset (BOR)
- 10-bit/up to 8-channel Analogue-to-digital converter (A/D)
- 100,000 Erase/write cycles enhanced flash program memory typical
- Programmable code protection
- 1,000,000 Erase/write cycles data EEPROM memory typical
- >40 Years Data EEPROM retention
- Self-reprogrammable under software control
- In-circuit serial Programming™ (ICSP™) via two pins
- Single-supply 5V in-circuit serial programming
- Power saving sleep mode
Technical Features
- CPU Speed: 20MHz
- Program Memory Size: 14KB
- RAM Memory Size: 368Byte
- Case Style: PDIP28
- No. of I/O's: 22I/O's
- Embedded Interface Type: I2C, SPI, USART
