Microchip PIC16F877-04/P Microcontrollore a 8 bit
Art. #: 230PIC16F877
Disponibilità:
in arrivo
| Quantità | Prezzo | IVA esclusa | IVA inclusa* |
|---|---|---|---|
| 1 | Listino | 5,8362 € | 7,120164 € |
| 10 | 10% | 5,25258 € | 6,408148 € |
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente

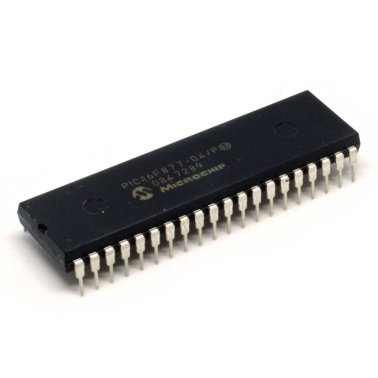

Microchip PIC16F877-04/P Microcontrollore a 8 bit
The PIC16F877-04/P is an flash based 8bit CMOS microcontroller in 40 pin DIP package. The device has two 8bit timer/counters with 8bit pre-scaler, one 16bit timer/counter with pre-scaler, watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation and two capture/compare PWM modules.
- Program memory of 14KB
- Operating frequency of DC to 20MHz
- Data EEPROM of 256bytes and 368bytes of RAM memory
- 14 interrupts and 3 timers
- MSSP, USART, PSP, SPI and I2C interfaces
- Brownout detection circuitry for brownout reset (BOR)
- 33 I/O pins
- Wide operating voltage range from 4V to 5.5V
- 10bit multi channel analogue to digital converter
- Operating temperature range from -40°C to 85°C
Technical Features
- CPU Speed: 4MHz
- Program Memory Size: 14KB
- RAM Memory Size: 368Byte
- Case Style: PDIP40
- No. of I/O's: 33I/O's
- Embedded Interface Type: I2C, PSP, SPI, USART
