Encapsulated Transformer Era EI30 / 10.5 1VA 115V - 12V
Product Code: 261EI307222
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €4.80 | €5.856 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

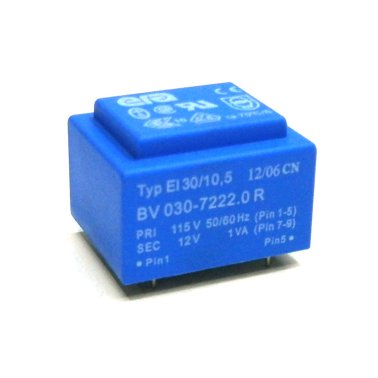

ERA BV030-7222 Encapsulated Transformer EI30 / 10.5 format
Transformer for PCB mounting, vacuum impregnated. Working frequency 50-60Hz
| Primary voltage | 115 Vac |
| Secondary voltage | 12 Vac |
| Power | 1 VA |
| Frequency | 50/60 Hz |
| Temperature Class | at 70 ° C |
| Dimensions | 27.6 x 32.6 x 22 mm |
| Weight | 70 g |
RoHS Compliant component
