Era Encapsulated Transformer EI30 / 12,5 1,5VA - 2x115V - 12V
Product Code: 261EI307713
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €3.68 | €4.4896 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

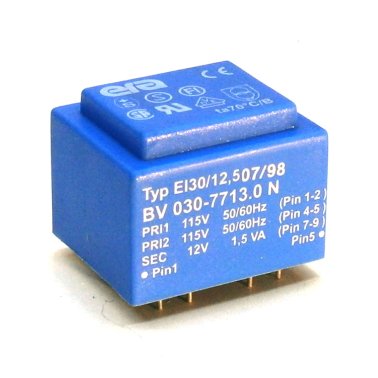

Encapsulated Transformer ERA Pulse BV030-7713.0 format EI30 / 12.5
Transformer for PCB mounting, vacuum impregnated. Working frequency 50-60Hz, Temperature class ta 70 °
| Primary voltage | 2x115 Vac |
| Secondary voltage | 12 Vac |
| Secondary Current | 125 mA |
| Power | 1.5 VA |
| No-load voltage | 16.70 Vac |
| Frequency | 50/60 Hz |
| Temperature Class | at 70 ° C |
| Dimensions | 27.6x32.6x24.4 mm |
| Weight | 80 g |
Non-RoHS component
