FLUKE 1777 Three-phase Network Analyzer with Wi-Fi, Bluetooth
Product Code: 560FLK-1777
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €11,473.00 | €13,997.06 |

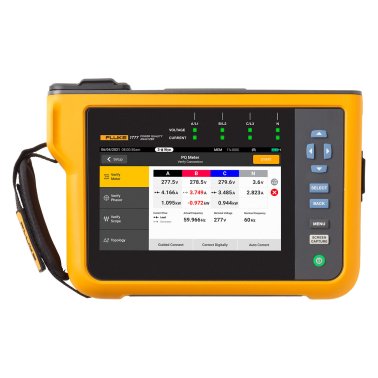

FLUKE 1777 Three-Phase Power Quality Analyzer with Ethernet, Wi-Fi, Bluetooth, and Direct Line Power
Main advantages
- Automatically measures and captures the main power quality parameters (harmonics, dips, swells, unbalance, inrush current, etc.)
- Large, bright touchscreen with physical navigation buttons and streamlined user interface.
- The guided setup feature allows for quick and foolproof installation, as well as the ability to automatically correct measurement connections digitally without having to change the physical probe connections.
- Ability to set up custom views for quick access to the most important tests and data
- Data transfer flexibility (for example, PC to USB, Wi-Fi, cellular connectivity, USB direct), without interrupting your power quality or energy study.
- Renewed software package (Energy Analyze Plus) for modern and intuitive data analysis and reports
Automatic measurements, Greater flexibility, Better power quality troubleshooting.
The Fluke 1770 Series Three-Phase Power and Power Quality Analyzers eliminate the complexities of power quality logging, troubleshooting, and analysis. Designed to make power quality studies as fast and easy as possible, the 1770 Series offers automated measurements, a clear user interface and configuration, state-of-the-art specifications, and a simplified reporting platform. The meter can also be powered directly from the measurement circuit, eliminating the need to find an outlet or run a long extension cord. With the 1770 Series, you'll never miss an important power quality event, from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as voltage, current and power measurements that help characterize your electrical system.
Automatic acquisition of measurements
Whether you're performing a quick system check or a detailed power quality study, data consistency is key. The Fluke 1770 Series offers a unique automatic measurement acquisition system that allows you to collect the right data every time, while giving you the flexibility to select and adjust specific parameters as needed. By default, more than 500 power quality parameters are captured, and the setup wizard makes it easy to select the correct parameters for the system you are working on. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software, so you don't have to wait for a session to complete before reviewing results or analyzing data.
Maximum measurement reliability
The Fluke 1770 series are 2-in-1 devices that combine the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer, in one easy-to-use handheld device. The "PQ Meter" (Power Quality Meter) feature gives you instant access to real-time data displayed in the field, so you can quickly identify potential problems when troubleshooting. The detailed power quality analysis and logging function eliminates the complexity of performing power quality studies by guiding you through the configuration process, ensuring you are getting the correct data every time. By combining these measurement modes with a unique auto-correction function for the measurement connection, you won't need to take a second measurement, even if you weren't sure what to look for initially.

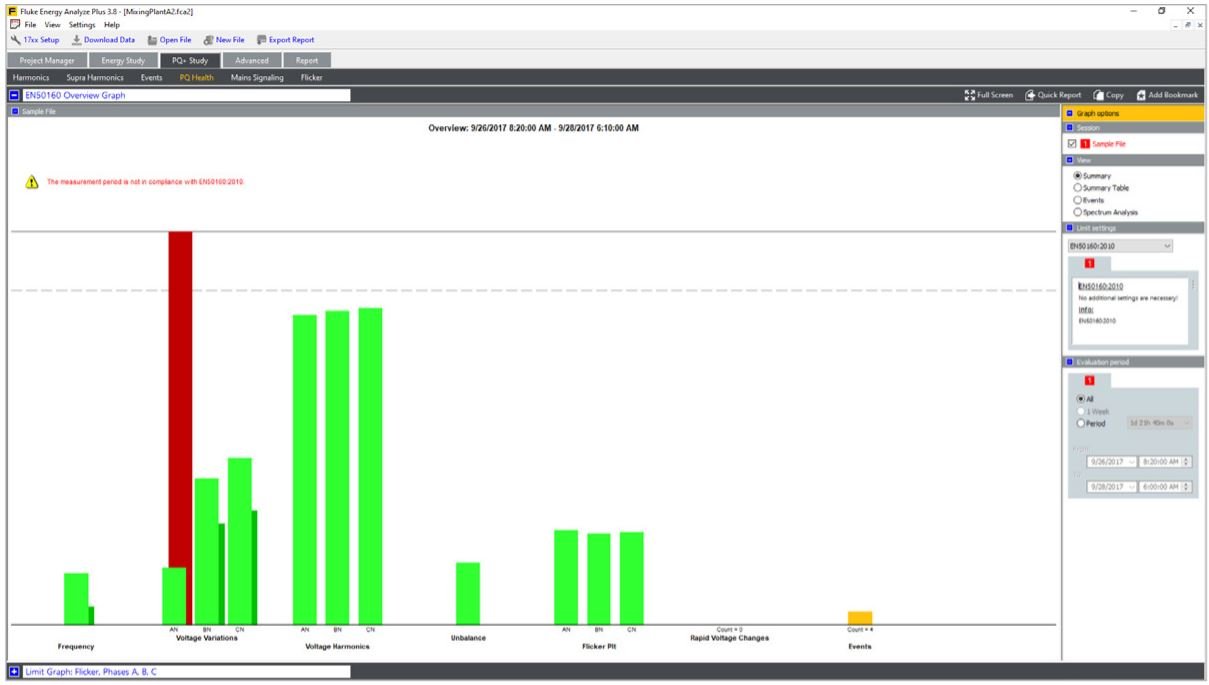

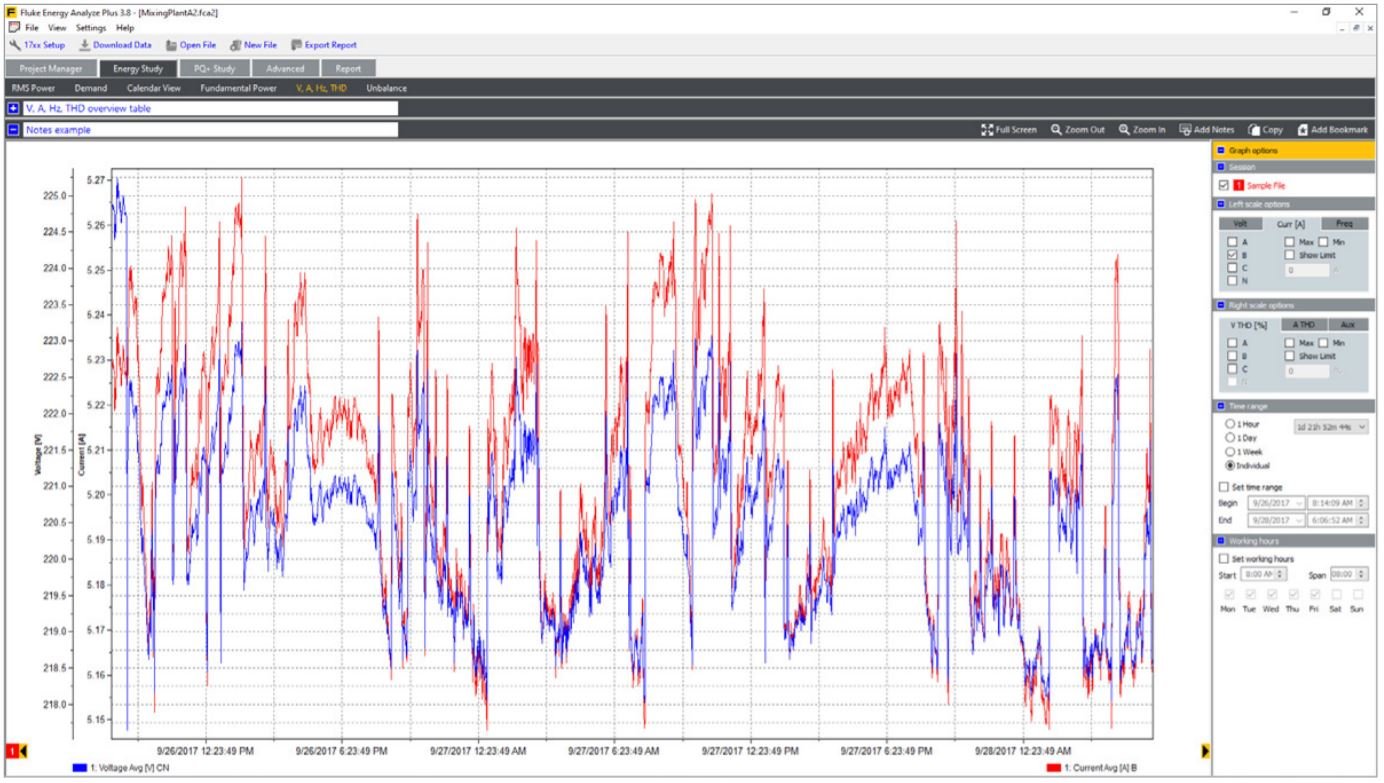

Powerful analytics software with easy-to-create reports
The Fluke 1770 Series Power Quality Analyzers come with powerful Fluke Energy Analyze Plus software, designed to eliminate problems encountered with other general purpose application software. Energy Analyze Plus allows you to evaluate power quality data right away and without extensive training. Download, analyze, monitor and report power quality and energy data easier than ever. Quickly compare results to historical values, evaluate industry norms, compare measured data to local conditions, and build a more complete picture of what's happening inside the facility, even if the data is still in the acquiring stage. Energy Analyze Plus offers unified support for Fluke 1730 Series Energy and Power Loggers, 1740 Series Power Quality Loggers, and 1770 Series Power Quality Analyzers
- Download "in office" and "on site" via PC application software
- Simple data downloads via USB stick, WiFi, LTE, wired Ethernet or USB cable
- Analyze all the measured details of energy consumption and power quality health with an automated reporting system
- One-touch reporting function creates reports compliant with EN 50160, IEEE 519, GOST 33073 IEC 61000-2-2 standards, or allows you to export data in PQDIF or NeQual compatible format or CSV for use with third-party software
- Advanced analysis allows the user to choose any available logged parameter and create a highly customized view of the measurements for advanced data correlation

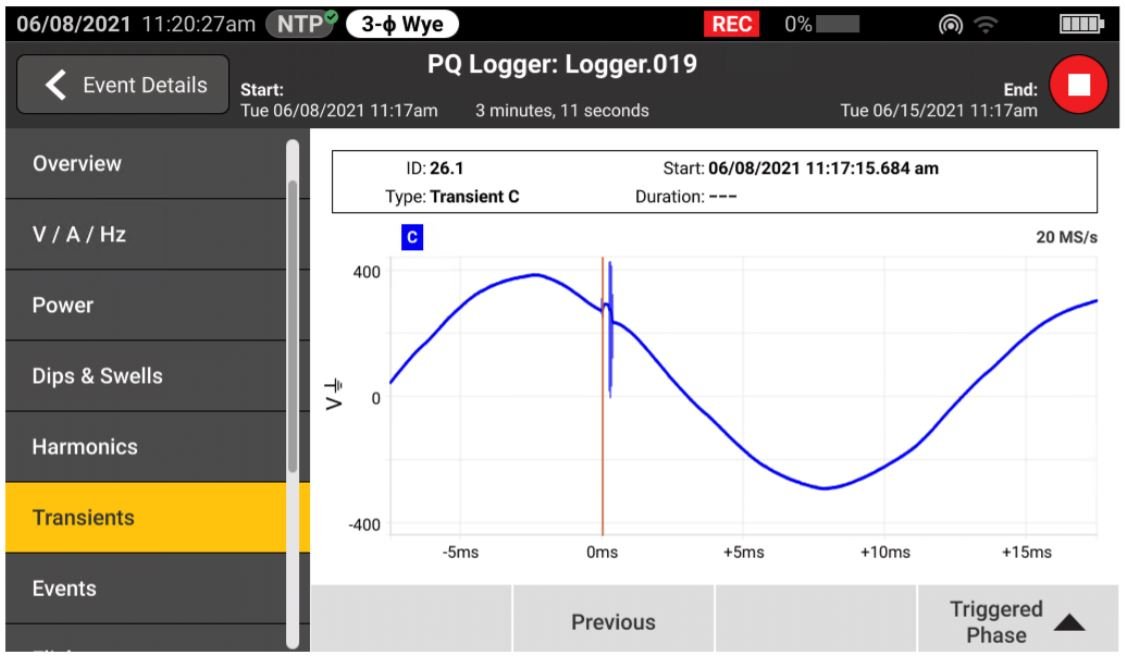

Capture high-speed voltage transients
Transients have a negative impact on otherwise healthy systems and their ability to damage equipment cannot be underestimated. Whether the system experiences pulsed or oscillatory transients, the results can be severe and cause problems ranging from insulation failures to total equipment failure. The Fluke 1775 and Fluke 1777 use advanced transient capture technology that clearly identifies high-speed voltage transients, so you have the data you need to stop them when you monitor them. The Fluke 1775 Power Quality Analyzer has 1 MHz sampling capability to capture fast transients, while the Fluke 1777 Power Quality Analyzer has 20 MHz sampling capability to capture the fastest transients in detail.

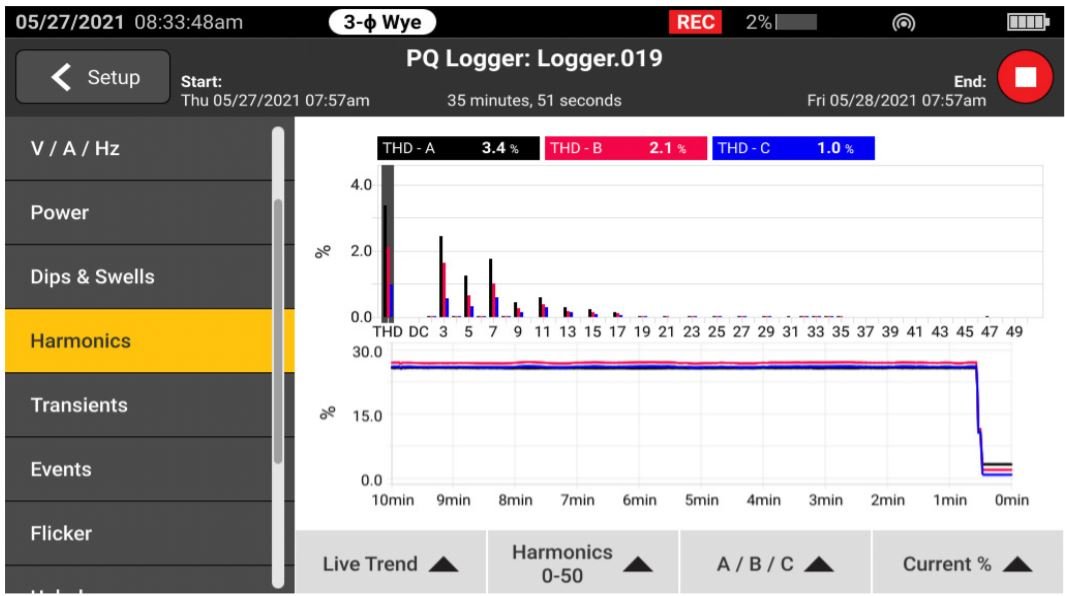

Calculation of current harmonic limits
When data is downloaded from the Fluke 1770 Series Power Quality Analyzers, the included Energy Analyze Plus software package can compare the current and voltage harmonics statistical data measured against different standards, such as EN 50160 or IEEE 519, to determine if they exceed the compliance limits. The powerful predictive maintenance functions allow to identify the current harmonics before the distortion appears on the voltage; this helps to prevent unexpected breakdowns or non-compliance situations, thus increasing the uptime. With the proliferation of inverter-based loads and power generation, keeping current harmonics under control is becoming increasingly important to ensure reliable power quality and avoid system downtime.
Work where, when and how you want
In the field, no two days are the same. You need a power quality analyzer that you can use anywhere and do what you need to do at any time. With a full range of accessories and built-in features, the Fluke 1770 Series makes your job easier. The slim, ergonomic design and integrated wrist strap make it easy to hold, while the included docking kit allows you to easily secure the analyzer inside a cabinet. The integrated internal power supply allows you to power the unit directly from the circuit being measured, while a 90-minute battery life allows you to access and review data even when not connected to an active system. Quick and easy data transfer to PC via USB C, USB A, Ethernet, WiFi and mobile network support options, depending on your needs. With an internal GPS module and optional double-insulated external antenna, you can synchronize data in real time for more precise troubleshooting and analysis.
Delivery details
- Product: FLUKE-1777, 0095969919012, 1777, FLK-1777, 5126630
- 1x Fluke-1777, power quality analyzer
- 4x i17xx-Flex1500 24, Fluke-17xx iFlex 1500 @ 24in, 2m
- 1x Fluke-17xx, flat cable, voltage test lead 3 phase+n
- 4x AC285, black alligator clip
- 1x AC285, green alligator clip
- 1x 1m black USB-C cable
- 1x power cord
- 1x FLK-17xx 0.18m nonstack/stack test lead set
- 1x green test lead
- 1x MP1-3R/1B, 1 magnetic probe, 3 red / 1 black magnetic probe for 4 mm banana plug
- 1x Fluke-174x Hook Kit
- 1x Fluke-177x-4204 WiFi/BLE Module
- 1x Wire Trace Set (for voltage and current)
- 1x Fluke-174x-ma-c8 Wall Plug Adapter
- 1x Statement of Calibration Practices
- 1x Fluke 1777 Hard Case
