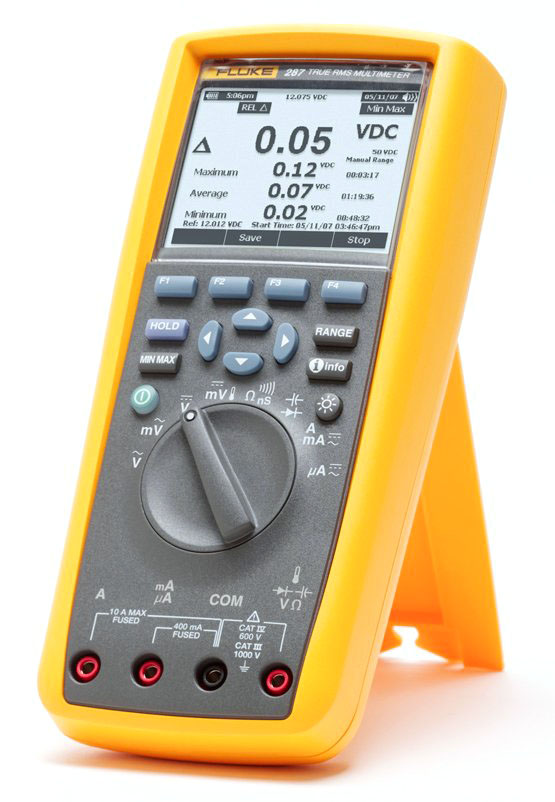

Fluke 287 advanced digital multimeter

Product Code: 560287

Inventory Status: on order

Quantity	Price	VAT excluded	VAT included
1	Default	€947.00	€1,155.34

* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

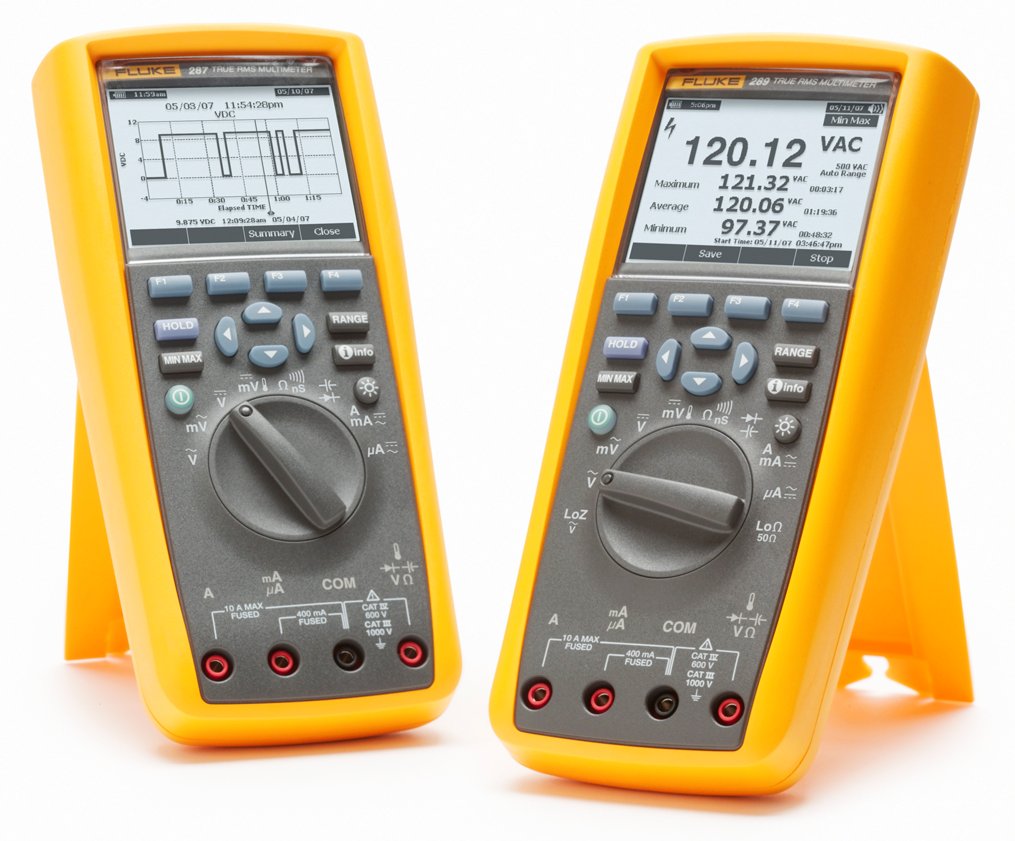

The Fluke 287 and 289 are the ultimate portable multimeters. They are the ideal tool for industrial environments with advanced features, ideal for troubleshooting. Use it to solve problems on motor drives, plant automation and energy distribution. Like the previous 180 Series, the new Fluke 289 and 287 represent the new generation of high-performance multimeters, with guaranteed accuracy and convenience in troubleshooting. With the ability to record data and display graphics on a large display, you can solve problems in the field more quickly so as to reduce downtime when you need to work simultaneously on multiple plants.

MAIN FEATURES

Large 50,000 dot display , (1/4 VGA) display with white backlight for fast and accurate display
Recording function with TrendCapture capture and display of quantities through graphs, to detect anomalies over time; possibility to memorize up to 10.000 readings.
Record multiple sessions or single data continuously for over 200 hours
Multipl measurements and on the display allow greater availability of information for surveys at a glance
P ulsante "i" : Doubts about using a measurement function? Select the "i" key to have immediate access to the help screens
PC interface for fast data transfer
Low Pass Filter is essential for accurate voltage and frequency measurements on variable speed motors and other noisy electrical equipment (289 only)
Low input impedance LoZ to avoid false readings due to "parasitic voltage." It is also the recommended way to verify the absence or presence of power supply (only 289)
Range 50 Ohm useful for measuring and comparing differences in the resistance of the motor windings
Soft-key keys and scroll buttons for easy navigation control and access to secondary functions
Upgradeable and expandable software that allows you to keep your device up to date
Recording of events and trends useful for the resolution of intermittent problems

MATRIX DISPLAY OF EVOLVED POINTS


Basic accuracy dc of 0.025%		"I" button for quick access to the help guide		TrendCapture function		Graphic display of recorded data

MAIN FUNCTIONS

Functions	Maximum	Res. Max.	287 and 289
DC voltage	1000 V	1 μV	± (0.025% + 5)
AC voltage	1000 V	1 μV	± (0.4% + 40)
DC current	10 A	0.01 μA	± (0.15% + 2)
AC Current	10 A	0.01 μA	± (0.7% + 5)
Temperature	-200 ° C to 1350 ° C	0.1 ° C	± (1.0% + 1 ° C)
Resistance	500 MΩ	0.01 Ω	± (0.05% + 2)
Conductance	50 nS	0.01 nS	± (1.0% + 10)
Capacity	100 mF	0.1 nF	± (1.0% + 5)
Frequency	1 MHz	0.01 Hz	± (0.005% + 1)
