Fluke 87V Industrial Digital Multimeter
Product Code: 56087V
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €701.00 | €855.22 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
PERFORMANCE AND PRECISION FOR BETTER PRODUCTIVITY
.jpg)
.gif)
The precise, rugged, and easy-to-use Fluke 80V Series multimeters can take accurate readings on speed controllers, plant power, power distribution, and electromechanical equipment.
The Fluke 87V has a unique feature that allows you to take accurate readings on "noisy" equipment. An integrated thermometer allows to measure the temperature eliminating the use of another instrument.
MAIN FEATURES
 |  |  | ||
 |  |  |
SPECIFICATIONS
| Function | Maximum | Resolution* | Precision* |
|---|---|---|---|
| DC voltage | 1000V | 0.1 mV | ± (0.05% + 1) |
| AC voltage | 1000V | 0.1 mV | ± (0.7% + 2) |
| DC current | 10A ** | 0.01 μA | ± (0.2% + 2) |
| AC current | 10A ** | 0.01 μA | ± (1.0% + 2) |
| Resistance | 50 MΩ | 0.01 Ω | ± (0.2% + 1) |
| Conductance | 60 nS | 0.001 nS | ± (1.0% + 10) |
| Capacity | 9999 μF | 0.01 nF | ± (1.0% + 2) |
| Frequency | > 200 kHz | 0.01 Hz | ± (0.005% + 1) |
| Temperature | From -200 to 1090 ° C | 0.1ºC | 1.0% |
| Temp probe 80BK | From -40 to 260 ° C | - | 2.2ºC or 2% |
For each function the accuracies provided are the best ones.
* The accuracy of the 87V model is estimated at 6,000 points and the resolution at 20,000 points
** 20 A up to 30 seconds
.jpg)
- Battery life (typical): over 400 hours (alkaline).
- Dimensions (HxWxD):
- 200mm x 95mm x 48mm
- Weight: 0.6 kg
- 87V: Lifetime warranty

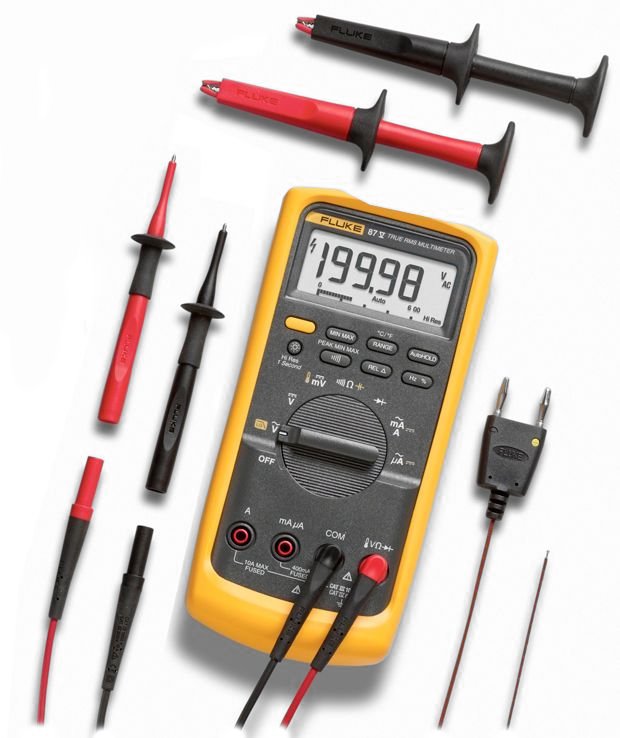

SUPPLIED
- TL75 test leads
- Alligator clips AC72
- Yellow protective shell (H80M excluding TPAK)
- 80BK temperature probe
- 9V battery (installed)
- CD-ROM (user manual and technical notes)
- Operator's Guide
