Testo 300 kit 1 Combustion Analyzer (O2, CO up to 4,000 ppm, NO can be subsequently integrated) 0564 3002 71
Product Code: 560T300KIT1
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1,395.00 | €1,701.90 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Combustion Analyzer Testo 300 Kit 1
- Intuitive measurement menus with quick response Smart-Touch display
- With O2 sensor and CO sensor up to 4,000 ppm
- Included in the kit: testo 300 flue gas analyzer with O2 sensor and CO sensor up to 4,000 ppm, power supply, basic flue gas probe, spare filters, testo Bluetooth® printer, spare thermal paper, EasyHeat software, instrument bag
- Integrated fine pressure measurement
- Documentation directly on site and sending of protocols by e-mail
- Wide range of probes that can be replaced in the blink of an eye
With this kit you will always be ready to face the main measurements on heating systems: the combustion analyzer approved by TÜV testo 300 is supplied with O2 sensor and CO sensor up to 4,000 ppm (NO / NOx sensor that can be integrated later), compact probe for flue gas, Bluetooth testo printer, instrument bag and other practical accessories.
KIT contents
testo 300 - combustion analyzer (O2, CO up to 4,000 ppm, NO can be subsequently integrated)
Code 0633 3002 70
The testo 300 flue gas analyzer is the ideal solution for carrying out all major measurements in the heating sector. This tool combines decades of experience in the field of measuring instruments with a Smart-Touch use in step with the times, robust processing and the ability to send protocols via e-mail. The testo 300 instrument allows you to easily measure flue gases, draft according to UNI 11137, pressure, ambient CO and differential temperature.- Intuitive measurement menus with quick response Smart-Touch display
- With O2 sensor and CO sensor up to 4,000 ppm
- Integrated fine pressure measurement
- Documentation directly on site and sending of protocols by e-mail
- Wide range of probes that can be replaced in the blink of an eye
- Magnetic device for fixing the instrument
Compact probe for smoke analyzers - length 180 mm, Ø 6 mm, Tmax. 500 ° C
Code 0600 9740
- A single tube that can be connected to the instrument via a sturdy bayonet connection for flue gas and flue gas temperatures
- The filter integrated in the handle, replaceable, protects the instrument and sensors.

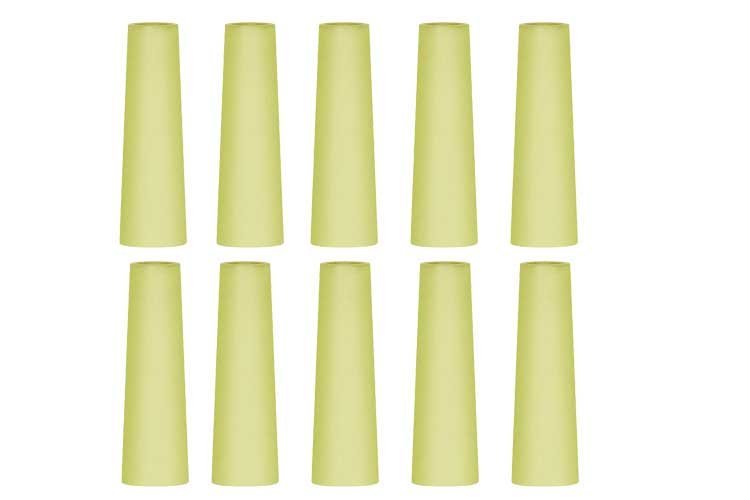

Replacement filter pack for compact smoke sampling probes (10 pieces)
Code 0554 0040
- Spare particle filter for compact flue gas probe
- Quantity: 10 pieces

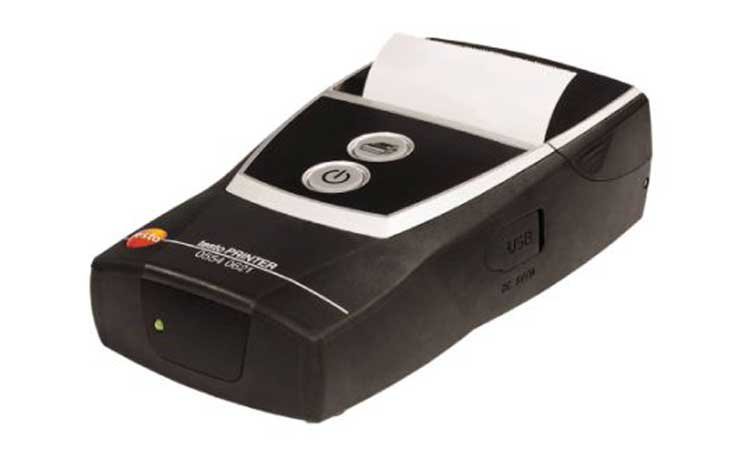

Bluetooth® / IRDA printer
Code 0554 0621
- Printer with Bluetooth® and IRDA interface for compatible Testo instruments
- Print measured values and graphs

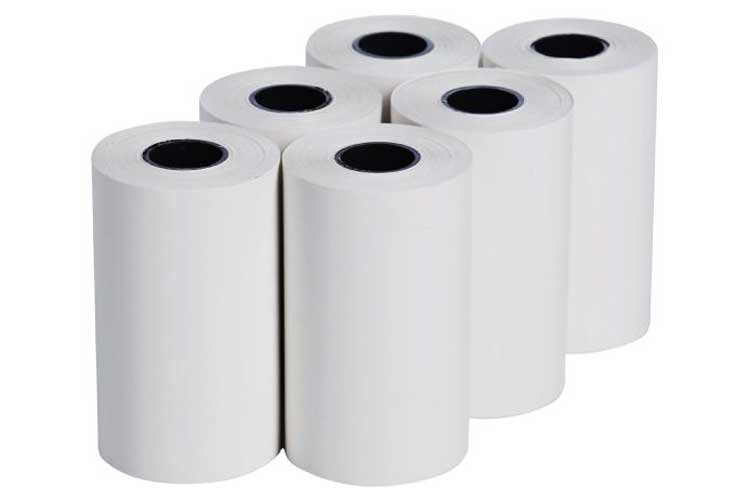

Replacement thermal paper for printer
Code 0554 0568
- Permanent thermal paper
- 6 rolls
Scope of supply
- Testo 300 flue gas analyzer with O2 sensor and CO sensor up to 4,000 ppm, NO sensor that can be subsequently integrated
- USB power supply with cable (0554 1106)
- Compact flue gas probe, 160 mm, Ø 6 mm, Tmax. 500 ° C; 1,5 m hose, filter and fixing cone (0600 9740)
- Spare filter for compact probe, 10 units (0554 0040)
- BLUETOOTH printer with 1 roll of thermal paper and rechargeable battery (0554 0621)
- Spare thermal paper for printer, valid for official documents (0554 0568)
- Free Download EasyHeat PC Software (0554 3332)
- Instrument bag
