Testo 400 Universal multifunction instrument for measuring environmental parameters 0560 0400
Product Code: 560T400
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1,265.00 | €1,543.30 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
With the universal instrument for measuring environmental parameters testo 400, you will be perfectly equipped to carry out your work on ventilation and air conditioning systems. The instrument for measuring environmental parameters, with integrated measuring assistant, optimally supports you during the measurement of the volume flow and the analysis of the comfort level, as well as during the adjustment and testing of ventilation and air conditioning systems .
- Smart and intuitive measurement programs, including HVAC grid measurement according to EN ISO 12599 and ASHRAE 111, measurement of PMV / PPD indices and degree of turbulence according to EN ISO 7730 and ASHRAE 55
- Integrated differential pressure sensor, ultra-precise and usable in any position
- To measure all the main environmental parameters with our wide range of probes for any environmental measurement
- It allows to document the measured values directly at the customer and to send them by e-mail or to process them with the testo DataControl PC software
High-quality measurement technology for the analysis of environmental parameters
- Integrated differential pressure sensor, ultra-precise and usable in any position
- Integrated absolute pressure sensor
- It measures all the main environmental parameters: air velocity, temperature, humidity, pressure, illuminance, radiant heat, degree of turbulence, CO2 and CO
- Numerous inputs for connecting probes: 2 probes with cable (TUC), 4 Bluetooth® probes, 2 probes with type K thermocouple
- Compatible with a wide range of Bluetooth® and wired probes that can be ordered separately, so you are ready for any measurement you need to carry out
- For ultra-precise measurements without downtime: function of entering the calibration curve up to a maximum of six points to obtain "zero error" measurements, replacement of probe terminals without having to restart the instrument, high quality probes with intelligent calibration (it is possible to calibrate the probes separately from the instrument, so that you can continue to use the testo 400 for other measurements.)
- Long-term monitoring of ambient air quality: Use the IAQ data logger to carry out long-term measurements with the testo 400 environmental measuring instrument. When measuring with the IAQ data logger, you can use the testo 400 instrument in another place for other measures
Smart, intuitive, comfortable: measurement programs, management of measured values and maximum ease of use
- For error-free measurements as required by current regulations: the smart and intuitive measurement menus and the analysis of the measured values with the colors of the traffic lights support you during the measurement. Use measurement programs that comply with legal requirements: HVAC grid measurement according to EN ISO 12599 and ASHRAE 111, measurement of PMV / PPD indices according to EN ISO 7730 and ASHRAE 55, measurement of air flow and degree of turbulence according to EN ISO 7730 and ASHRAE 55, measure WBGT in accordance with DIN 33403 and EN ISO 7243, measure NET in accordance with DIN 33403
- Complete the measurement and provide complete documentation with photographs, comments and logo of your company directly to the customer and then send everything by e-mail (via WiFi connection)
- Management of customers and measuring points directly in the instrument, for more efficient work in the field
- Smart-Touch display for intuitive use of the instrument for measuring environmental parameters
- Testo DataControl PC software for further analysis, archiving and documentation of measured values on your computer
- Integrated WiFi and Bluetooth® interfaces: sending of measurement protocols or printing with a compatible printer directly on site

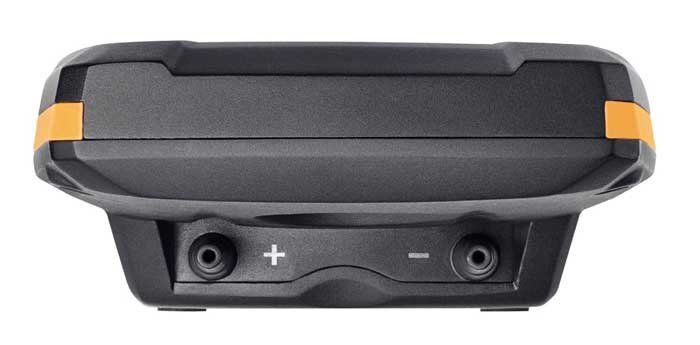

Testo 400 - 0560 0400 - Top view

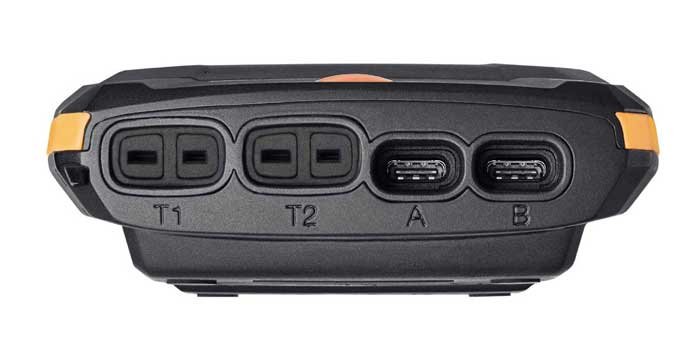

Testo 400 - 0560 0400 - Bottom view
Scope of supply
1 universal instrument for measuring environmental parameters testo 400 with carrying case for volume flow measurement, testo DataControl software, connection hose, power supply with USB cable, test protocol and instruction manual.
Product codes: Testo 400, 0560 0400, 4029547021756
