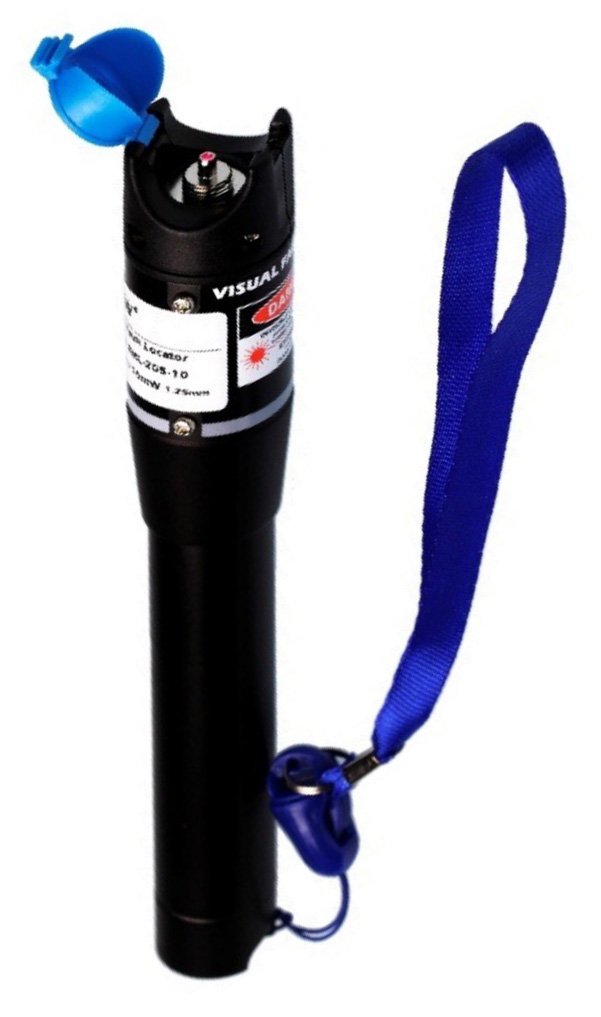

Visual Fault Locator for inspection of fiber optic cabling
Product Code: 560VISUAL-LOCATOR
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €105.00 | €128.10 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Visual Fault Locator for inspection of fiber optic cabling
Light source @ 650nm (red) used to check the continuity of the signal during installation, testing and maintenance of the network. Useful for identifying the fibers during the cabling phase. The Visual Fault Locator or laser pen is an essential tool for quickly and easily locating any signal interruptions in fiber optic links. It is a 650nm laser source that emits red light. The usefulness of this tool also emerges during splicing and cabling activities, allowing rapid recognition, thanks to a visible laser, of a specific connector or a specific fiber. Laser range up to 10 km, available in versions for 1.25 mm ferrules for LC and MU connectors and for 2.50 mm ferrules for the rest of the connectors.
TECHNICAL SPECIFICATIONS
- Working wavelength (nm) 650 ± 20
- Output power (mW)> 10
- Distance covered (km) 8-10
- Fixed or pulsed modulation
- Adaptable connectors with ferrules ᴓ1.25mm, ᴓ 2.5mm
- Storage temperature (° C) -20 / + 60 ° C - <90% RH
- Operating temperature (° C) -10 / + 50 ° C - <90% RH
- Power supply n. 2 AA batteries
- Weight (gr) 80 gr
Product code: FBN0000830
Further information in the attached product sheet
