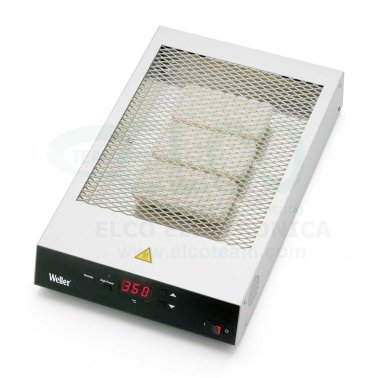

Weller WHP3000-600 Infrared preheating plate 600 Watt T0053338699N
Product Code: 520WHP3000-600
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1,591.00 | €1,941.02 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
WHP3000-600 Infrared pre-heating plate 600 Watt.
Preheating area 120mm x 190mm with Weller Easy Fix supports
Infrared preheating plate, max. preheated area 120 x 190 mm with three ceramic elements. The plate is used to pre-heat circuit boards during rework to improve soldering. The glow plate can be used as a standalone unit or integrated into WHA 3000P/V systems and with the WX Series. When used with WHA 3000P/V systems, it provides pre-heating from the part underneath the circuits, fixed to the appropriate WBH/WBHS support.
3 infrared ceramic plates for high temperatures heat the area underneath the component to be machined and reduce the risk of any thermal damage. The setpoint and actual values of the temperatures are displayed digitally. A K-type external sensor can be connected.
Technical data:
- Digital display for selected and actual temperatures
- Electronic temperature control
- 3 high performance ceramic elements for fast and efficient heating
- 2 different heating areas can be programmed
- Connectable external sensor (accessory) of Type K
- RS 232 interface connector for connection to the WHA 3000 hot air unit or the WX Series
- Heated surface 120 x 190 mm
- Temperatures 50°C– 400°C
- ESD compliant
